Overview (Full volume)

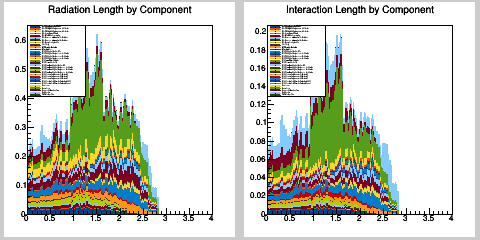

Average radiation length in full volume (eta = [0, 4.0])	0.23280
Average interaction length in full volume (eta = [0, 4.0])	0.07501

Bill of materials: materials_outer.csv

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S FE hybrid circuits	0.00704	0.00203
2S FE hybrid spacers 1.8 mm	0.00071	0.00027
2S FE hybrid spacers 4.0 mm	0.00011	0.00004
2S Inactive silicon	0.00044	0.00009
2S Module Supports	0.00437	0.00110
2S Sensor spacers (1.8 mm)	0.00186	0.00063
2S Sensor spacers (4.0 mm)	0.00027	0.00009
2S Service hybrids	0.00802	0.00203
Cooling	0.00197	0.00029
MPA and Bumps	0.01212	0.00236
Mechanics	0.00370	0.00181
PS FE hybrid circuits	0.01862	0.00541
PS FE hybrid spacers 1.6 mm	0.00012	0.00005
PS FE hybrid spacers 2.6 mm	0.00112	0.00039
PS FE hybrid spacers 4.0 mm	0.00407	0.00139
PS Inactive silicon	0.00122	0.00025
PS Power hybrid	0.02045	0.00386
PS Readout hybrid circuit	0.00961	0.00274
PS Readout hybrid spacer 1.6 mm	0.00010	0.00003
PS Readout hybrid spacer 2.6 mm	0.00030	0.00010
PS Readout hybrid spacer 4.0 mm	0.00087	0.00030
PS Sensor spacers (1.6 mm)	0.00036	0.00013
PS Sensor spacers (2.6 mm)	0.00123	0.00043
PS Sensor spacers (4.0 mm)	0.00377	0.00130
PS Support plate (below hybrids)	0.00241	0.00117
PS Support plate (below sensor)	0.00223	0.00108
Sensors	0.02147	0.00432
Services	0.06484	0.02047
Support Mechanics	0.01472	0.00719
Supports	0.02453	0.01365
Twisted pairs	0.00018	0.00003

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S FE hybrid circuits	0.00704	0.00203
2S FE hybrid spacers 1.8 mm	0.00071	0.00027
2S FE hybrid spacers 4.0 mm	0.00011	0.00004
2S Inactive silicon	0.00044	0.00009
2S Module Supports	0.00437	0.00110
2S Sensor spacers (1.8 mm)	0.00186	0.00063
2S Sensor spacers (4.0 mm)	0.00027	0.00009
2S Service hybrids	0.00802	0.00203
Cooling	0.00197	0.00029
MPA and Bumps	0.01212	0.00236
Mechanics	0.00370	0.00181
PS FE hybrid circuits	0.01862	0.00541
PS FE hybrid spacers 1.6 mm	0.00012	0.00005
PS FE hybrid spacers 2.6 mm	0.00112	0.00039
PS FE hybrid spacers 4.0 mm	0.00407	0.00139
PS Inactive silicon	0.00122	0.00025
PS Power hybrid	0.02045	0.00386
PS Readout hybrid circuit	0.00961	0.00274
PS Readout hybrid spacer 1.6 mm	0.00010	0.00003
PS Readout hybrid spacer 2.6 mm	0.00030	0.00010
PS Readout hybrid spacer 4.0 mm	0.00087	0.00030
PS Sensor spacers (1.6 mm)	0.00036	0.00013
PS Sensor spacers (2.6 mm)	0.00123	0.00043
PS Sensor spacers (4.0 mm)	0.00377	0.00130
PS Support plate (below hybrids)	0.00241	0.00117
PS Support plate (below sensor)	0.00223	0.00108
Sensors	0.02147	0.00432
Services in Outer Tracking Volume	0.03806	0.01152
Support Mechanics	0.01472	0.00719
Supports in Outer Tracking Volume	0.00993	0.00543
Twisted pairs	0.00018	0.00003

Region	C	I	F	VF	VVF
etaMin	0.0	0.8	1.6	2.4	3.2
etaMax	0.8	1.6	2.4	3.2	4.0

Clean pions	C	I	F	VF	VVF

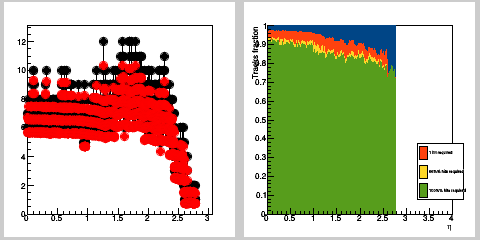

1 hit required	2.8185	5.5406	10.2856	18.5648	-nan
66%% hits required	7.6780	11.7268	15.6621	21.9062	-nan
100%% hits required	9.3166	14.0159	17.4795	22.4560	-nan

Material	C	I	F	VF
Rad. length	0.2589	0.4539	0.3592	0.0920
Int. length	0.0873	0.1543	0.1035	0.0299
Photon conversion	0.1824	0.2974	0.2437	0.0691

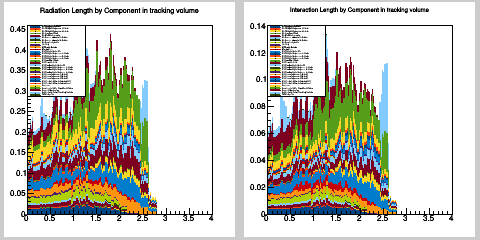

Average radiation length in tracking volume (eta = [0, 4.0])	0.19143
Average interaction length in tracking volume (eta = [0, 4.0])	0.05784
