OT803_IT640 - Material (outer)

Total (Full volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.25190	0.08087

Total MB (Full volume)

Total per category (Full volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.02862	0.01023
Module	0.13979	0.03612
Supports & Cooling	0.08350	0.03451

Total per category: MB in All OT subdetectors (Full volume)

OTST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.01002	0.00497

Total per category: MB in OTST (Full volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00926	0.00335
Module	0.02093	0.00529
Supports & Cooling	0.01391	0.00559

Total per category: MB in TB2S (Full volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01314	0.00466
Module	0.06060	0.01570
Supports & Cooling	0.03337	0.01501

Total per category: MB in TBPS (Full volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00379	0.00136
Module	0.02803	0.00729
Supports & Cooling	0.01131	0.00372

Total per category: MB in TEDD_1 (Full volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00243	0.00085
Module	0.03022	0.00784
Supports & Cooling	0.01488	0.00522

Total per category: MB in TEDD_2 (Full volume)

Category details: Cabling (Full volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00303	0.00128
Cabling: Hybrid power lines	0.00552	0.00170
Cabling: Optical fibers	0.00061	0.00035
Cabling: Pipe thermistor twisted pairs	0.00010	0.00002

Cabling: MB in TB2S (Full volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00420	0.00169
Cabling: Hybrid power lines	0.00754	0.00227
Cabling: Optical fibers	0.00113	0.00065
Cabling: Pipe thermistor twisted pairs	0.00027	0.00005

Cabling: MB in TBPS (Full volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00120	0.00051
Cabling: Hybrid power lines	0.00220	0.00068
Cabling: Optical fibers	0.00026	0.00015
Cabling: Pipe thermistor twisted pairs	0.00013	0.00002

Cabling: MB in TEDD_1 (Full volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00076	0.00031
Cabling: Hybrid power lines	0.00137	0.00041
Cabling: Optical fibers	0.00020	0.00011
Cabling: Pipe thermistor twisted pairs	0.00010	0.00002

Cabling: MB in TEDD_2 (Full volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00920	0.00379
Cabling: Hybrid power lines	0.01663	0.00506
Cabling: Optical fibers	0.00220	0.00127
Cabling: Pipe thermistor twisted pairs	0.00059	0.00011

Cabling: MB in all subdetectors (Full volume)

Category details: Module (Full volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00410	0.00121
2S Module: FE hybrid spacers	0.00045	0.00017
2S Module: Inactive silicon (around the edges)	0.00038	0.00008
2S Module: Inactive silicon (deep diffused)	0.00071	0.00014
2S Module: Sensor spacers	0.00118	0.00041
2S Module: Sensors	0.00687	0.00139
2S Module: Service hybrids	0.00472	0.00124
2S Module: Supports	0.00251	0.00065

Module: MB in TB2S (Full volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
PS Module: FE hybrid circuits	0.01121	0.00330
PS Module: FE hybrid spacers	0.00260	0.00091
PS Module: Inactive silicon (around the edges)	0.00091	0.00018
PS Module: Inactive silicon (deep diffused)	0.00120	0.00024
PS Module: MPA and Bump bonds	0.00918	0.00182
PS Module: Power hybrid	0.01171	0.00255
PS Module: Readout hybrid circuits	0.00594	0.00175
PS Module: Readout hybrid spacers	0.00068	0.00024
PS Module: Sensor spacers	0.00284	0.00100
PS Module: Sensors	0.01156	0.00234
PS Module: Support plate	0.00278	0.00137

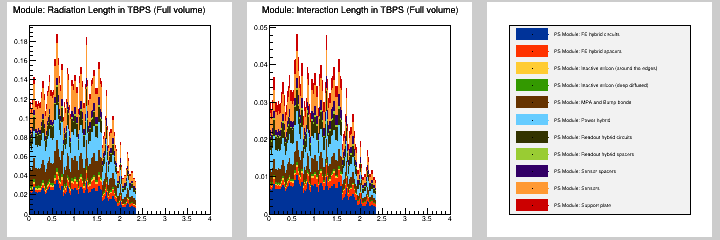

Module: MB in TBPS (Full volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00122	0.00036
2S Module: FE hybrid spacers	0.00014	0.00005
2S Module: Inactive silicon (around the edges)	0.00011	0.00002
2S Module: Inactive silicon (deep diffused)	0.00021	0.00004
2S Module: Sensor spacers	0.00035	0.00012
2S Module: Sensors	0.00205	0.00041
2S Module: Service hybrids	0.00141	0.00037
2S Module: Supports	0.00075	0.00019
PS Module: FE hybrid circuits	0.00387	0.00114
PS Module: FE hybrid spacers	0.00139	0.00048
PS Module: Inactive silicon (around the edges)	0.00031	0.00006
PS Module: Inactive silicon (deep diffused)	0.00041	0.00008
PS Module: MPA and Bump bonds	0.00317	0.00063
PS Module: Power hybrid	0.00405	0.00088
PS Module: Readout hybrid circuits	0.00205	0.00060
PS Module: Readout hybrid spacers	0.00030	0.00010
PS Module: Sensor spacers	0.00128	0.00045
PS Module: Sensors	0.00399	0.00081
PS Module: Support plate	0.00096	0.00047

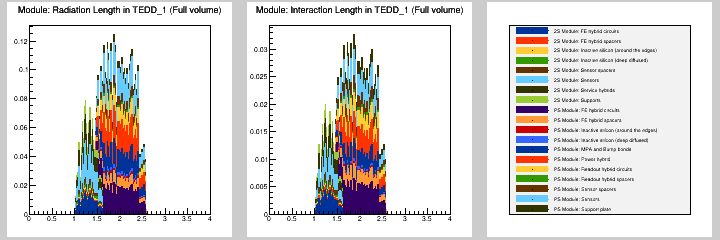

Module: MB in TEDD_1 (Full volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00187	0.00055
2S Module: FE hybrid spacers	0.00025	0.00009
2S Module: Inactive silicon (around the edges)	0.00017	0.00004
2S Module: Inactive silicon (deep diffused)	0.00032	0.00007
2S Module: Sensor spacers	0.00064	0.00022
2S Module: Sensors	0.00314	0.00064
2S Module: Service hybrids	0.00216	0.00057
2S Module: Supports	0.00115	0.00030
PS Module: FE hybrid circuits	0.00365	0.00107
PS Module: FE hybrid spacers	0.00131	0.00045
PS Module: Inactive silicon (around the edges)	0.00030	0.00006
PS Module: Inactive silicon (deep diffused)	0.00039	0.00008
PS Module: MPA and Bump bonds	0.00299	0.00059
PS Module: Power hybrid	0.00381	0.00083
PS Module: Readout hybrid circuits	0.00193	0.00057
PS Module: Readout hybrid spacers	0.00028	0.00010
PS Module: Sensor spacers	0.00121	0.00042
PS Module: Sensors	0.00376	0.00076
PS Module: Support plate	0.00091	0.00045

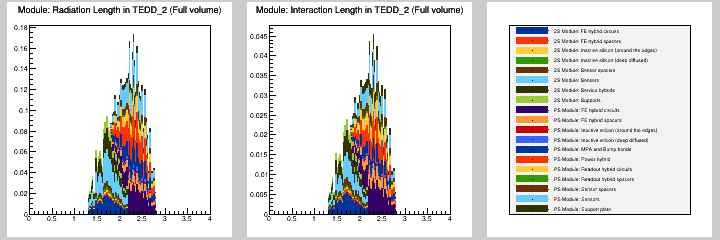

Module: MB in TEDD_2 (Full volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00720	0.00212
2S Module: FE hybrid spacers	0.00084	0.00032
2S Module: Inactive silicon (around the edges)	0.00067	0.00014
2S Module: Inactive silicon (deep diffused)	0.00125	0.00025
2S Module: Sensor spacers	0.00217	0.00075
2S Module: Sensors	0.01205	0.00244
2S Module: Service hybrids	0.00829	0.00217
2S Module: Supports	0.00441	0.00114
PS Module: FE hybrid circuits	0.01874	0.00551
PS Module: FE hybrid spacers	0.00529	0.00185
PS Module: Inactive silicon (around the edges)	0.00152	0.00031
PS Module: Inactive silicon (deep diffused)	0.00200	0.00040
PS Module: MPA and Bump bonds	0.01534	0.00304
PS Module: Power hybrid	0.01957	0.00425
PS Module: Readout hybrid circuits	0.00992	0.00292
PS Module: Readout hybrid spacers	0.00125	0.00044
PS Module: Sensor spacers	0.00533	0.00187
PS Module: Sensors	0.01931	0.00391
PS Module: Support plate	0.00465	0.00229

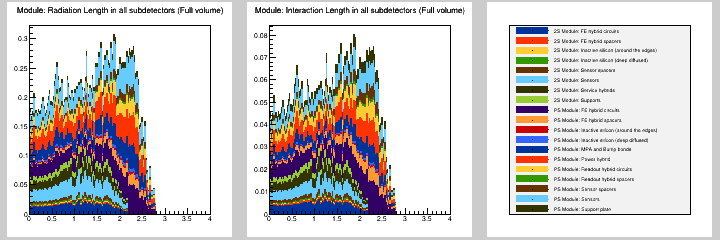

Module: MB in all subdetectors (Full volume)

Category details: Supports & Cooling (Full volume)

OTST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: OTST	0.01002	0.00497

Supports & Cooling: MB in OTST (Full volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00396	0.00067
Supports Mechanics: TB2S Innermost cylinder (horizontal)	0.00220	0.00113
Supports Mechanics: TB2S Ladder	0.00439	0.00207
Supports Mechanics: TB2S Outermost cylinder (horizontal)	0.00132	0.00068
Supports Mechanics: TB2S Rings (Vertical)	0.00205	0.00104

Supports & Cooling: MB in TB2S (Full volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00527	0.00090
Supports Mechanics: TBPS (Layer common)	0.00076	0.00038
Supports Mechanics: TBPS (Module common)	0.01485	0.00736
Supports Mechanics: TBPS (Tilted Ring common)	0.00296	0.00147
Supports Mechanics: TBPS Innermost cylinder (horizontal)	0.00695	0.00358
Supports Mechanics: TBPS Outermost cylinder (horizontal)	0.00258	0.00133

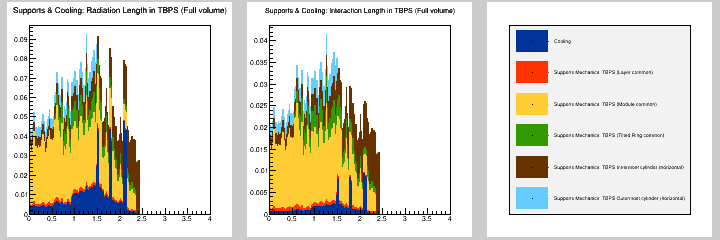

Supports & Cooling: MB in TBPS (Full volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00560	0.00081
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00160	0.00082
Supports Mechanics: TEDD Outermost cylinder (horizontal)	0.00057	0.00029
Supports Mechanics: TEDD disk	0.00355	0.00180

Supports & Cooling: MB in TEDD_1 (Full volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00652	0.00094
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00329	0.00169
Supports Mechanics: TEDD Outermost cylinder (horizontal)	0.00094	0.00048
Supports Mechanics: TEDD disk	0.00414	0.00210

Supports & Cooling: MB in TEDD_2 (Full volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.02134	0.00331
Supports Mechanics: OTST	0.01002	0.00497
Supports Mechanics: TB2S Innermost cylinder (horizontal)	0.00220	0.00113
Supports Mechanics: TB2S Ladder	0.00439	0.00207
Supports Mechanics: TB2S Outermost cylinder (horizontal)	0.00132	0.00068
Supports Mechanics: TB2S Rings (Vertical)	0.00205	0.00104
Supports Mechanics: TBPS (Layer common)	0.00076	0.00038
Supports Mechanics: TBPS (Module common)	0.01485	0.00736
Supports Mechanics: TBPS (Tilted Ring common)	0.00296	0.00147
Supports Mechanics: TBPS Innermost cylinder (horizontal)	0.00695	0.00358
Supports Mechanics: TBPS Outermost cylinder (horizontal)	0.00258	0.00133
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00488	0.00251
Supports Mechanics: TEDD Outermost cylinder (horizontal)	0.00151	0.00078
Supports Mechanics: TEDD disk	0.00769	0.00391

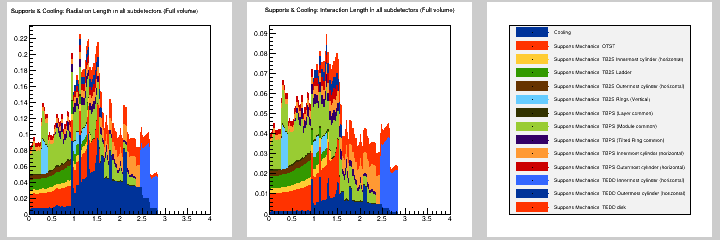

Supports & Cooling: MB in all subdetectors (Full volume)

Total (Tracking volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.20641	0.06243

Total MB (Tracking volume)

Total per category (Tracking volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01274	0.00441
Module	0.13979	0.03612
Supports & Cooling	0.05388	0.02190

Total per category: MB in All OT subdetectors (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00101	0.00033
Supports & Cooling	0.00037	0.00006

Total per category: MB in FPIX_1 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00417	0.00206

Total per category: MB in ITST (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00046	0.00016
Supports & Cooling	0.00023	0.00004

Total per category: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00077	0.00038

Total per category: MB in SERVICE_CYLINDER_ST (Tracking volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00183	0.00062
Module	0.02093	0.00529
Supports & Cooling	0.00865	0.00378

Total per category: MB in TB2S (Tracking volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00881	0.00306
Module	0.06060	0.01570
Supports & Cooling	0.02584	0.01134

Total per category: MB in TBPS (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00038	0.00015
Module	0.02803	0.00729
Supports & Cooling	0.00724	0.00213

Total per category: MB in TEDD_1 (Tracking volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00026	0.00010
Module	0.03022	0.00784
Supports & Cooling	0.00660	0.00210

Total per category: MB in TEDD_2 (Tracking volume)

Category details: Cabling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00020	0.00007
Cabling: High voltage lines (routed)	0.00011	0.00004
Cabling: Optical fibers	0.00012	0.00007
Cabling: Serial power chains (routed)	0.00058	0.00015

Cabling: MB in FPIX_1 (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00012	0.00004
Cabling: High voltage lines	0.00007	0.00003
Cabling: Optical fibers	0.00007	0.00004
Cabling: Serial power chains	0.00020	0.00005

Cabling: MB in PXB (Tracking volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00058	0.00021
Cabling: Hybrid power lines	0.00102	0.00029
Cabling: Optical fibers	0.00019	0.00011
Cabling: Pipe thermistor twisted pairs	0.00004	0.00001

Cabling: MB in TB2S (Tracking volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00277	0.00106
Cabling: Hybrid power lines	0.00488	0.00143
Cabling: Optical fibers	0.00090	0.00052
Cabling: Pipe thermistor twisted pairs	0.00025	0.00005

Cabling: MB in TBPS (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00010	0.00004
Cabling: Hybrid power lines	0.00018	0.00005
Cabling: Optical fibers	0.00008	0.00005
Cabling: Pipe thermistor twisted pairs	0.00002	0.00000

Cabling: MB in TEDD_1 (Tracking volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00007	0.00003
Cabling: Hybrid power lines	0.00012	0.00004
Cabling: Optical fibers	0.00006	0.00003
Cabling: Pipe thermistor twisted pairs	0.00002	0.00000

Cabling: MB in TEDD_2 (Tracking volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00032	0.00011
Cabling: High voltage lines	0.00359	0.00137
Cabling: High voltage lines (routed)	0.00011	0.00004
Cabling: Hybrid power lines	0.00620	0.00181
Cabling: Optical fibers	0.00141	0.00081
Cabling: Pipe thermistor twisted pairs	0.00033	0.00006
Cabling: Serial power chains	0.00020	0.00005
Cabling: Serial power chains (routed)	0.00058	0.00015

Cabling: MB in all subdetectors (Tracking volume)

Category details: Module (Tracking volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00410	0.00121
2S Module: FE hybrid spacers	0.00045	0.00017
2S Module: Inactive silicon (around the edges)	0.00038	0.00008
2S Module: Inactive silicon (deep diffused)	0.00071	0.00014
2S Module: Sensor spacers	0.00118	0.00041
2S Module: Sensors	0.00687	0.00139
2S Module: Service hybrids	0.00472	0.00124
2S Module: Supports	0.00251	0.00065

Module: MB in TB2S (Tracking volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
PS Module: FE hybrid circuits	0.01121	0.00330
PS Module: FE hybrid spacers	0.00260	0.00091
PS Module: Inactive silicon (around the edges)	0.00091	0.00018
PS Module: Inactive silicon (deep diffused)	0.00120	0.00024
PS Module: MPA and Bump bonds	0.00918	0.00182
PS Module: Power hybrid	0.01171	0.00255
PS Module: Readout hybrid circuits	0.00594	0.00175
PS Module: Readout hybrid spacers	0.00068	0.00024
PS Module: Sensor spacers	0.00284	0.00100
PS Module: Sensors	0.01156	0.00234
PS Module: Support plate	0.00278	0.00137

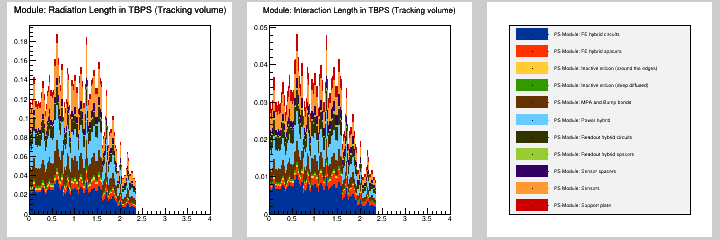

Module: MB in TBPS (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00122	0.00036
2S Module: FE hybrid spacers	0.00014	0.00005
2S Module: Inactive silicon (around the edges)	0.00011	0.00002
2S Module: Inactive silicon (deep diffused)	0.00021	0.00004
2S Module: Sensor spacers	0.00035	0.00012
2S Module: Sensors	0.00205	0.00041
2S Module: Service hybrids	0.00141	0.00037
2S Module: Supports	0.00075	0.00019
PS Module: FE hybrid circuits	0.00387	0.00114
PS Module: FE hybrid spacers	0.00139	0.00048
PS Module: Inactive silicon (around the edges)	0.00031	0.00006
PS Module: Inactive silicon (deep diffused)	0.00041	0.00008
PS Module: MPA and Bump bonds	0.00317	0.00063
PS Module: Power hybrid	0.00405	0.00088
PS Module: Readout hybrid circuits	0.00205	0.00060
PS Module: Readout hybrid spacers	0.00030	0.00010
PS Module: Sensor spacers	0.00128	0.00045
PS Module: Sensors	0.00399	0.00081
PS Module: Support plate	0.00096	0.00047

Module: MB in TEDD_1 (Tracking volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00187	0.00055
2S Module: FE hybrid spacers	0.00025	0.00009
2S Module: Inactive silicon (around the edges)	0.00017	0.00004
2S Module: Inactive silicon (deep diffused)	0.00032	0.00007
2S Module: Sensor spacers	0.00064	0.00022
2S Module: Sensors	0.00314	0.00064
2S Module: Service hybrids	0.00216	0.00057
2S Module: Supports	0.00115	0.00030
PS Module: FE hybrid circuits	0.00365	0.00107
PS Module: FE hybrid spacers	0.00131	0.00045
PS Module: Inactive silicon (around the edges)	0.00030	0.00006
PS Module: Inactive silicon (deep diffused)	0.00039	0.00008
PS Module: MPA and Bump bonds	0.00299	0.00059
PS Module: Power hybrid	0.00381	0.00083
PS Module: Readout hybrid circuits	0.00193	0.00057
PS Module: Readout hybrid spacers	0.00028	0.00010
PS Module: Sensor spacers	0.00121	0.00042
PS Module: Sensors	0.00376	0.00076
PS Module: Support plate	0.00091	0.00045

Module: MB in TEDD_2 (Tracking volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00720	0.00212
2S Module: FE hybrid spacers	0.00084	0.00032
2S Module: Inactive silicon (around the edges)	0.00067	0.00014
2S Module: Inactive silicon (deep diffused)	0.00125	0.00025
2S Module: Sensor spacers	0.00217	0.00075
2S Module: Sensors	0.01205	0.00244
2S Module: Service hybrids	0.00829	0.00217
2S Module: Supports	0.00441	0.00114
PS Module: FE hybrid circuits	0.01874	0.00551
PS Module: FE hybrid spacers	0.00529	0.00185
PS Module: Inactive silicon (around the edges)	0.00152	0.00031
PS Module: Inactive silicon (deep diffused)	0.00200	0.00040
PS Module: MPA and Bump bonds	0.01534	0.00304
PS Module: Power hybrid	0.01957	0.00425
PS Module: Readout hybrid circuits	0.00992	0.00292
PS Module: Readout hybrid spacers	0.00125	0.00044
PS Module: Sensor spacers	0.00533	0.00187
PS Module: Sensors	0.01931	0.00391
PS Module: Support plate	0.00465	0.00229

Module: MB in all subdetectors (Tracking volume)

Category details: Supports & Cooling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Pipes & Coolant (routed)	0.00037	0.00006

Supports & Cooling: MB in FPIX_1 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: ITST (cylinder around TEPX)	0.00356	0.00177
Supports Mechanics: ITST (flange)	0.00060	0.00030

Supports & Cooling: MB in ITST (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Pipes & Coolant (routed)	0.00023	0.00004

Supports & Cooling: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: Service cylinder (around TEPX)	0.00067	0.00033
Supports Mechanics: Service cylinder (transition region)	0.00010	0.00005

Supports & Cooling: MB in SERVICE_CYLINDER_ST (Tracking volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00156	0.00028
Supports Mechanics: TB2S Innermost cylinder (horizontal)	0.00220	0.00113
Supports Mechanics: TB2S Ladder	0.00310	0.00146
Supports Mechanics: TB2S Rings (Vertical)	0.00179	0.00091

Supports & Cooling: MB in TB2S (Tracking volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00469	0.00081
Supports Mechanics: TBPS (Layer common)	0.00076	0.00038
Supports Mechanics: TBPS (Module common)	0.01485	0.00736
Supports Mechanics: TBPS (Tilted Ring common)	0.00296	0.00147
Supports Mechanics: TBPS Outermost cylinder (horizontal)	0.00258	0.00133

Supports & Cooling: MB in TBPS (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00426	0.00061
Supports Mechanics: TEDD disk	0.00298	0.00151

Supports & Cooling: MB in TEDD_1 (Tracking volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00346	0.00050
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00083	0.00043
Supports Mechanics: TEDD disk	0.00231	0.00118

Supports & Cooling: MB in TEDD_2 (Tracking volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.01398	0.00220
Cooling: Pipes & Coolant (routed)	0.00060	0.00010
Supports Mechanics: ITST (cylinder around TEPX)	0.00356	0.00177
Supports Mechanics: ITST (flange)	0.00060	0.00030
Supports Mechanics: Service cylinder (around TEPX)	0.00067	0.00033
Supports Mechanics: Service cylinder (transition region)	0.00010	0.00005
Supports Mechanics: TB2S Innermost cylinder (horizontal)	0.00220	0.00113
Supports Mechanics: TB2S Ladder	0.00310	0.00146
Supports Mechanics: TB2S Rings (Vertical)	0.00179	0.00091
Supports Mechanics: TBPS (Layer common)	0.00076	0.00038
Supports Mechanics: TBPS (Module common)	0.01485	0.00736
Supports Mechanics: TBPS (Tilted Ring common)	0.00296	0.00147
Supports Mechanics: TBPS Outermost cylinder (horizontal)	0.00258	0.00133
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00083	0.00043
Supports Mechanics: TEDD disk	0.00529	0.00269

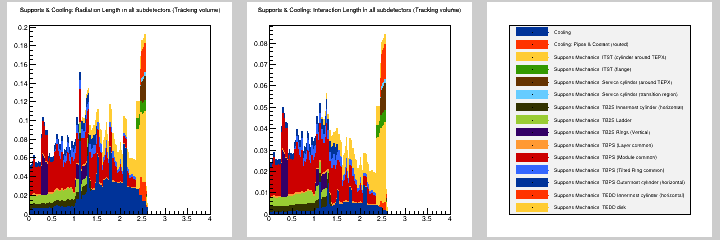

Supports & Cooling: MB in all subdetectors (Tracking volume)

Material distribution

Radiation length material map

Interaction length material map

Nuclear interactions

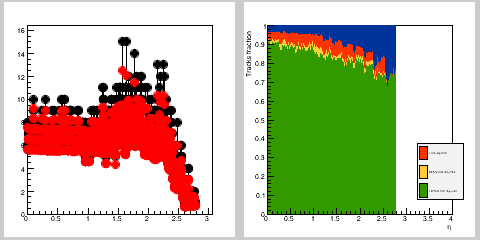

Hits occupancy & track efficiency for hadrons

Summary

Region	C	I	F	VF	VVF
etaMin	0.0	0.8	1.6	2.4	3.2
etaMax	0.8	1.6	2.4	3.2	4.0

Clean pions	C	I	F	VF	VVF
1 hit required	3.7778	6.3912	13.2180	22.8838	-nan
66%% hits required	9.0651	12.8922	18.8534	26.4004	-nan
100%% hits required	10.7485	15.2604	20.7540	26.8411	-nan

Material	C	I	F	VF	VVF
Rad. length	0.2984	0.4978	0.3794	0.0822	0.0000
Int. length	0.0993	0.1653	0.1108	0.0284	0.0000
Photon conversion	0.2071	0.3210	0.2555	0.0619	0.0000
