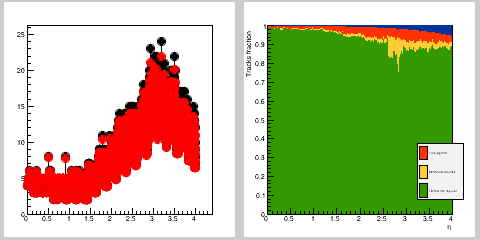

OT800_IT631

Total (Full volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.35581	0.10737

Total per category (Full volume)

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.07204	0.01939
Module	0.10340	0.01523
Supports & Cooling	0.18037	0.07275

Total per category: MB in All IT subdetectors (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.03240	0.00964
Module	0.05334	0.00783
Supports & Cooling	0.06861	0.02577

Total per category: MB in FPIX_1 (Full volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01759	0.00406
Module	0.01551	0.00235
Supports & Cooling	0.03027	0.01131

Total per category: MB in FPIX_2 (Full volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.03428	0.01697

Total per category: MB in ITST (Full volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.02204	0.00569
Module	0.03456	0.00505
Supports & Cooling	0.03387	0.01209

Total per category: MB in PXB (Full volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.01334	0.00661

Total per category: MB in SERVICE_CYLINDER_ST (Full volume)

Category details: Cabling (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00310	0.00105
Cabling: E-links	0.00078	0.00008
Cabling: GBT + DCDC converter	0.01192	0.00334
Cabling: High voltage lines (on dees)	0.00090	0.00036
Cabling: High voltage lines (routed)	0.00169	0.00068
Cabling: Optical fibers	0.00177	0.00102
Cabling: Serial power chains (on dees)	0.00314	0.00080
Cabling: Serial power chains (routed)	0.00909	0.00230

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00030	0.00010
Cabling: Dee PCB panel	0.01241	0.00256
Cabling: E-links	0.00006	0.00001
Cabling: GBT + DCDC converter	0.00297	0.00083
Cabling: High voltage lines (routed)	0.00025	0.00010
Cabling: Optical fibers	0.00017	0.00010
Cabling: Serial power chains (routed)	0.00142	0.00036

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00141	0.00048
Cabling: E-links	0.00538	0.00056
Cabling: GBT + DCDC converter	0.00629	0.00176
Cabling: High voltage lines	0.00231	0.00093
Cabling: Optical fibers	0.00080	0.00046
Cabling: Serial power chains	0.00586	0.00149

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00481	0.00163
Cabling: Dee PCB panel	0.01241	0.00256
Cabling: E-links	0.00622	0.00065
Cabling: GBT + DCDC converter	0.02118	0.00594
Cabling: High voltage lines	0.00231	0.00093
Cabling: High voltage lines (on dees)	0.00090	0.00036
Cabling: High voltage lines (routed)	0.00194	0.00079
Cabling: Optical fibers	0.00275	0.00158
Cabling: Serial power chains	0.00586	0.00149
Cabling: Serial power chains (on dees)	0.00314	0.00080
Cabling: Serial power chains (routed)	0.01051	0.00266

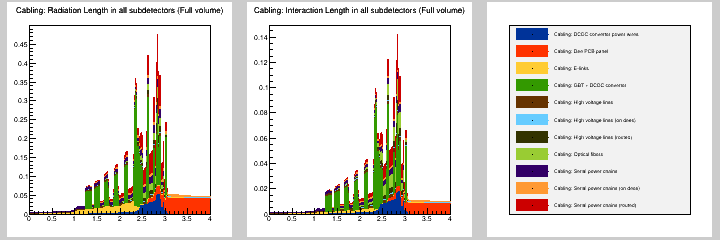

Cabling: MB in all subdetectors (Full volume)

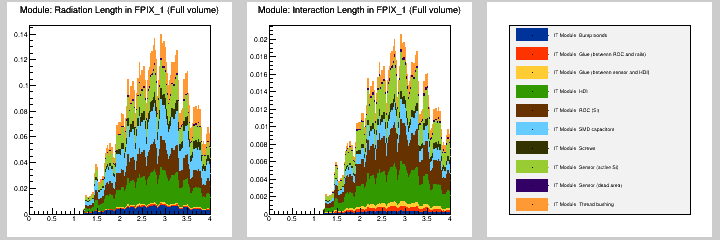

Category details: Module (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00260	0.00014
IT Module: Glue (between ROC and rails)	0.00046	0.00021
IT Module: Glue (between sensor and HDI)	0.00046	0.00021
IT Module: HDI	0.01012	0.00171
IT Module: ROC (Si)	0.00922	0.00187
IT Module: SMD capacitors	0.01095	0.00087
IT Module: Screws	0.00333	0.00035
IT Module: Sensor (active Si)	0.00827	0.00168
IT Module: Sensor (dead area)	0.00061	0.00012
IT Module: Thread bushing	0.00732	0.00067

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00083	0.00004
IT Module: Glue (between ROC and rails)	0.00015	0.00007
IT Module: Glue (between sensor and HDI)	0.00015	0.00007
IT Module: HDI	0.00324	0.00055
IT Module: ROC (Si)	0.00294	0.00059
IT Module: SMD capacitors	0.00336	0.00027
IT Module: Screws	0.00065	0.00007
IT Module: Sensor (active Si)	0.00265	0.00054
IT Module: Sensor (dead area)	0.00014	0.00003
IT Module: Thread bushing	0.00142	0.00013

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00166	0.00009
IT Module: Glue (between ROC and rails)	0.00029	0.00014
IT Module: Glue (between sensor and HDI)	0.00029	0.00014
IT Module: HDI	0.00646	0.00109
IT Module: ROC (Si)	0.00588	0.00119
IT Module: SMD capacitors	0.00703	0.00056
IT Module: Screws	0.00227	0.00024
IT Module: Sensor (active Si)	0.00528	0.00107
IT Module: Sensor (dead area)	0.00040	0.00008
IT Module: Thread bushing	0.00499	0.00046

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00508	0.00027
IT Module: Glue (between ROC and rails)	0.00090	0.00042
IT Module: Glue (between sensor and HDI)	0.00090	0.00042
IT Module: HDI	0.01982	0.00334
IT Module: ROC (Si)	0.01804	0.00365
IT Module: SMD capacitors	0.02134	0.00170
IT Module: Screws	0.00625	0.00066
IT Module: Sensor (active Si)	0.01620	0.00328
IT Module: Sensor (dead area)	0.00115	0.00023
IT Module: Thread bushing	0.01372	0.00126

Module: MB in all subdetectors (Full volume)

Category details: Supports & Cooling (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (Graphite plate)	0.00302	0.00153
Cooling: Cooling blocks (Si3N4 plate)	0.01375	0.00366
Cooling: Pipes & Coolant (on dees)	0.01007	0.00162
Cooling: Pipes & Coolant (routed)	0.00575	0.00093
Supports Mechanics: Dee CFRP panel	0.01797	0.00890
Supports Mechanics: Dee Carbon foam panel	0.01504	0.00764
Supports Mechanics: Disk CFK extension	0.00302	0.00150

Supports & Cooling: MB in FPIX_1 (Full volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN plate)	0.00667	0.00185
Cooling: Cooling blocks (Graphite plate)	0.00958	0.00487
Cooling: Pipes & Coolant (on dees)	0.00605	0.00098
Cooling: Pipes & Coolant (routed)	0.00098	0.00016
Supports Mechanics: Dee Airex foam	0.00077	0.00038
Supports Mechanics: Dee CFRP panel	0.00434	0.00215
Supports Mechanics: Disk CFK extension	0.00062	0.00031
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00114	0.00056

Supports & Cooling: MB in FPIX_2 (Full volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: ITST (cylinder around TBPX)	0.00317	0.00157
Supports Mechanics: ITST (cylinder around TEPX)	0.01085	0.00538
Supports Mechanics: ITST (cylinder around TFPX)	0.01916	0.00949
Supports Mechanics: ITST (flange)	0.00110	0.00054

Supports & Cooling: MB in ITST (Full volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN rails)	0.00422	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00399	0.00203
Cooling: Cooling blocks (CF plate)	0.00885	0.00450
Cooling: Pipes & Coolant (on ladders)	0.00678	0.00104
Cooling: Pipes & Coolant (routed)	0.00484	0.00078
Supports Mechanics: TBPX External Cylinder	0.00371	0.00184
Supports Mechanics: TBPX Internal Rings	0.00149	0.00074

Supports & Cooling: MB in PXB (Full volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: Service cylinder (around TEPX)	0.00397	0.00197
Supports Mechanics: Service cylinder (around TFPX)	0.00777	0.00385
Supports Mechanics: Service cylinder (reinf. rings)	0.00114	0.00056
Supports Mechanics: Service cylinder (transition region)	0.00046	0.00023

Supports & Cooling: MB in SERVICE_CYLINDER_ST (Full volume)

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN plate)	0.00667	0.00185
Cooling: Cooling blocks (AlN rails)	0.00422	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00399	0.00203
Cooling: Cooling blocks (CF plate)	0.00885	0.00450
Cooling: Cooling blocks (Graphite plate)	0.01260	0.00640
Cooling: Cooling blocks (Si3N4 plate)	0.01375	0.00366
Cooling: Pipes & Coolant (on dees)	0.01612	0.00260
Cooling: Pipes & Coolant (on ladders)	0.00678	0.00104
Cooling: Pipes & Coolant (routed)	0.01157	0.00186
Supports Mechanics: Dee Airex foam	0.00077	0.00038
Supports Mechanics: Dee CFRP panel	0.02231	0.01105
Supports Mechanics: Dee Carbon foam panel	0.01504	0.00764
Supports Mechanics: Disk CFK extension	0.00364	0.00180
Supports Mechanics: ITST (cylinder around TBPX)	0.00317	0.00157
Supports Mechanics: ITST (cylinder around TEPX)	0.01085	0.00538
Supports Mechanics: ITST (cylinder around TFPX)	0.01916	0.00949
Supports Mechanics: ITST (flange)	0.00110	0.00054
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00114	0.00056
Supports Mechanics: Service cylinder (around TEPX)	0.00397	0.00197
Supports Mechanics: Service cylinder (around TFPX)	0.00777	0.00385
Supports Mechanics: Service cylinder (reinf. rings)	0.00114	0.00056
Supports Mechanics: Service cylinder (transition region)	0.00046	0.00023
Supports Mechanics: TBPX External Cylinder	0.00371	0.00184
Supports Mechanics: TBPX Internal Rings	0.00149	0.00074

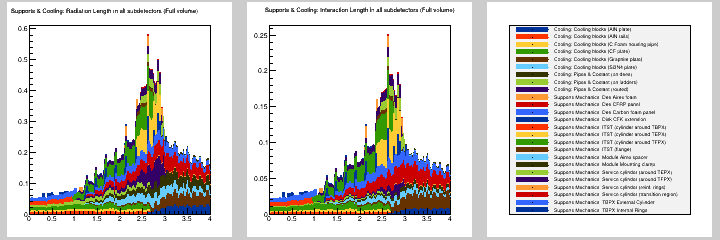

Supports & Cooling: MB in all subdetectors (Full volume)

Total (Tracking volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.24482	0.06596

Total per category (Tracking volume)

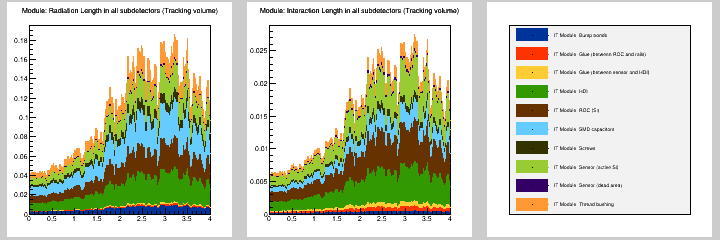

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.02670	0.00671
Module	0.10340	0.01523
Supports & Cooling	0.11471	0.04402

Total per category: MB in All IT subdetectors (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01083	0.00319
Module	0.05334	0.00783
Supports & Cooling	0.05711	0.02174

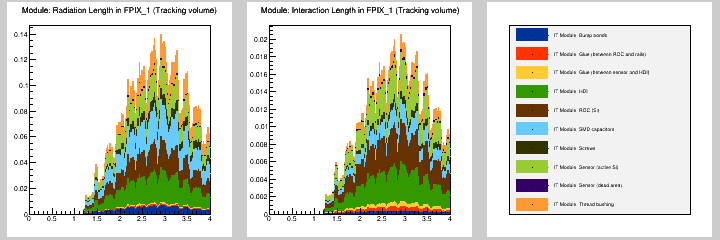

Total per category: MB in FPIX_1 (Tracking volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00871	0.00180
Module	0.01551	0.00235
Supports & Cooling	0.02534	0.00980

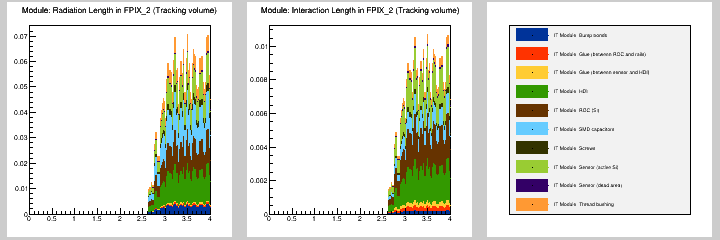

Total per category: MB in FPIX_2 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00258	0.00128

Total per category: MB in ITST (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00716	0.00172
Module	0.03456	0.00505
Supports & Cooling	0.02650	0.00964

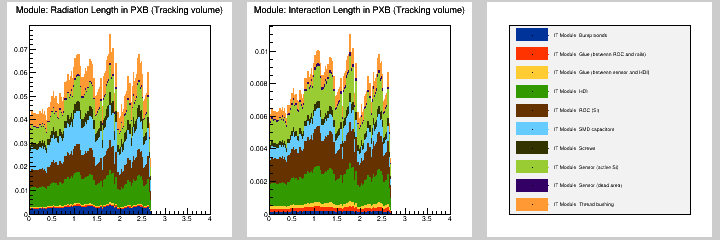

Total per category: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00287	0.00142

Total per category: MB in SERVICE_CYLINDER_ST (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00000	0.00000
Supports & Cooling	0.00032	0.00015

Total per category: MB in TEDD_1 (Tracking volume)

Category details: Cabling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00103	0.00035
Cabling: E-links	0.00049	0.00005
Cabling: GBT + DCDC converter	0.00158	0.00044
Cabling: High voltage lines (on dees)	0.00079	0.00032
Cabling: High voltage lines (routed)	0.00056	0.00023
Cabling: Optical fibers	0.00059	0.00034
Cabling: Serial power chains (on dees)	0.00278	0.00070
Cabling: Serial power chains (routed)	0.00300	0.00076

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: Dee PCB panel	0.00871	0.00180
Cabling: E-links	0.00000	0.00000
Cabling: High voltage lines (routed)	0.00000	0.00000
Cabling: Serial power chains (routed)	0.00000	0.00000

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00052	0.00018
Cabling: E-links	0.00276	0.00029
Cabling: High voltage lines	0.00111	0.00045
Cabling: Optical fibers	0.00030	0.00017
Cabling: Serial power chains	0.00248	0.00064

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: Pipe thermistor twisted pairs	0.00000	0.00000

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00155	0.00053
Cabling: Dee PCB panel	0.00871	0.00180
Cabling: E-links	0.00326	0.00034
Cabling: GBT + DCDC converter	0.00158	0.00044
Cabling: High voltage lines	0.00111	0.00045
Cabling: High voltage lines (on dees)	0.00079	0.00032
Cabling: High voltage lines (routed)	0.00056	0.00023
Cabling: Optical fibers	0.00089	0.00051
Cabling: Pipe thermistor twisted pairs	0.00000	0.00000
Cabling: Serial power chains	0.00248	0.00064
Cabling: Serial power chains (on dees)	0.00278	0.00070
Cabling: Serial power chains (routed)	0.00300	0.00076

Cabling: MB in all subdetectors (Tracking volume)

Category details: Module (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00260	0.00014
IT Module: Glue (between ROC and rails)	0.00046	0.00021
IT Module: Glue (between sensor and HDI)	0.00046	0.00021
IT Module: HDI	0.01012	0.00171
IT Module: ROC (Si)	0.00922	0.00187
IT Module: SMD capacitors	0.01095	0.00087
IT Module: Screws	0.00333	0.00035
IT Module: Sensor (active Si)	0.00827	0.00168
IT Module: Sensor (dead area)	0.00061	0.00012
IT Module: Thread bushing	0.00732	0.00067

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00083	0.00004
IT Module: Glue (between ROC and rails)	0.00015	0.00007
IT Module: Glue (between sensor and HDI)	0.00015	0.00007
IT Module: HDI	0.00324	0.00055
IT Module: ROC (Si)	0.00294	0.00059
IT Module: SMD capacitors	0.00336	0.00027
IT Module: Screws	0.00065	0.00007
IT Module: Sensor (active Si)	0.00265	0.00054
IT Module: Sensor (dead area)	0.00014	0.00003
IT Module: Thread bushing	0.00142	0.00013

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00166	0.00009
IT Module: Glue (between ROC and rails)	0.00029	0.00014
IT Module: Glue (between sensor and HDI)	0.00029	0.00014
IT Module: HDI	0.00646	0.00109
IT Module: ROC (Si)	0.00588	0.00119
IT Module: SMD capacitors	0.00703	0.00056
IT Module: Screws	0.00227	0.00024
IT Module: Sensor (active Si)	0.00528	0.00107
IT Module: Sensor (dead area)	0.00040	0.00008
IT Module: Thread bushing	0.00499	0.00046

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00508	0.00027
IT Module: Glue (between ROC and rails)	0.00090	0.00042
IT Module: Glue (between sensor and HDI)	0.00090	0.00042
IT Module: HDI	0.01982	0.00334
IT Module: ROC (Si)	0.01804	0.00365
IT Module: SMD capacitors	0.02134	0.00170
IT Module: Screws	0.00625	0.00066
IT Module: Sensor (active Si)	0.01620	0.00328
IT Module: Sensor (dead area)	0.00115	0.00023
IT Module: Thread bushing	0.01372	0.00126

Module: MB in all subdetectors (Tracking volume)

Category details: Supports & Cooling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (Graphite plate)	0.00302	0.00153
Cooling: Cooling blocks (Si3N4 plate)	0.01375	0.00366
Cooling: Pipes & Coolant (on dees)	0.00889	0.00143
Cooling: Pipes & Coolant (routed)	0.00190	0.00031
Supports Mechanics: Dee CFRP panel	0.01587	0.00786
Supports Mechanics: Dee Carbon foam panel	0.01329	0.00675
Supports Mechanics: Disk CFK extension	0.00039	0.00020

Supports & Cooling: MB in FPIX_1 (Tracking volume)

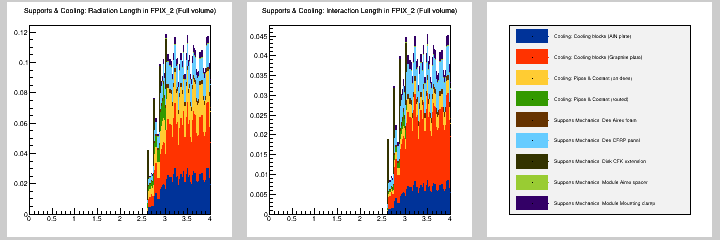

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN plate)	0.00667	0.00185
Cooling: Cooling blocks (Graphite plate)	0.00958	0.00487
Cooling: Pipes & Coolant (on dees)	0.00425	0.00069
Cooling: Pipes & Coolant (routed)	0.00000	0.00000
Supports Mechanics: Dee Airex foam	0.00054	0.00027
Supports Mechanics: Dee CFRP panel	0.00305	0.00151
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00114	0.00056

Supports & Cooling: MB in FPIX_2 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: ITST (cylinder around TFPX)	0.00225	0.00112
Supports Mechanics: ITST (flange)	0.00033	0.00016

Supports & Cooling: MB in ITST (Tracking volume)

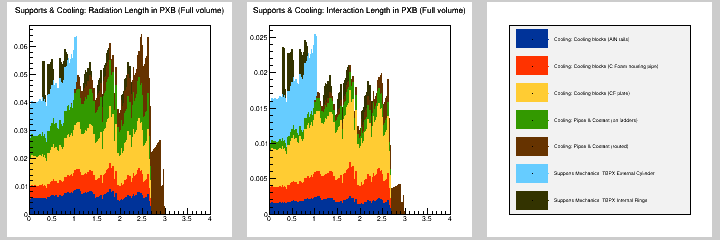

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN rails)	0.00422	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00399	0.00203
Cooling: Cooling blocks (CF plate)	0.00885	0.00450
Cooling: Pipes & Coolant (on ladders)	0.00678	0.00104
Cooling: Pipes & Coolant (routed)	0.00124	0.00020
Supports Mechanics: TBPX Internal Rings	0.00142	0.00070

Supports & Cooling: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: Service cylinder (around TFPX)	0.00235	0.00116
Supports Mechanics: Service cylinder (reinf. rings)	0.00022	0.00011
Supports Mechanics: Service cylinder (transition region)	0.00030	0.00015

Supports & Cooling: MB in SERVICE_CYLINDER_ST (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00004	0.00001
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00025	0.00013
Supports Mechanics: TEDD disk	0.00003	0.00001

Supports & Cooling: MB in TEDD_1 (Tracking volume)

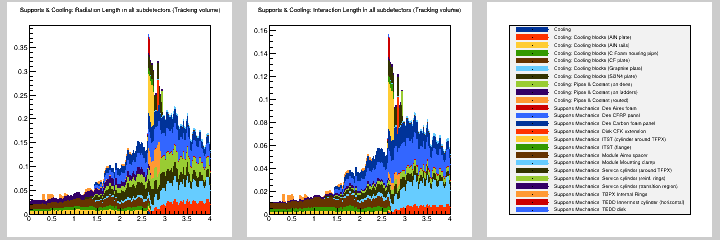

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00004	0.00001
Cooling: Cooling blocks (AlN plate)	0.00667	0.00185
Cooling: Cooling blocks (AlN rails)	0.00422	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00399	0.00203
Cooling: Cooling blocks (CF plate)	0.00885	0.00450
Cooling: Cooling blocks (Graphite plate)	0.01260	0.00640
Cooling: Cooling blocks (Si3N4 plate)	0.01375	0.00366
Cooling: Pipes & Coolant (on dees)	0.01314	0.00212
Cooling: Pipes & Coolant (on ladders)	0.00678	0.00104
Cooling: Pipes & Coolant (routed)	0.00314	0.00050
Supports Mechanics: Dee Airex foam	0.00054	0.00027
Supports Mechanics: Dee CFRP panel	0.01892	0.00937
Supports Mechanics: Dee Carbon foam panel	0.01329	0.00675
Supports Mechanics: Disk CFK extension	0.00039	0.00020
Supports Mechanics: ITST (cylinder around TFPX)	0.00225	0.00112
Supports Mechanics: ITST (flange)	0.00033	0.00016
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00114	0.00056
Supports Mechanics: Service cylinder (around TFPX)	0.00235	0.00116
Supports Mechanics: Service cylinder (reinf. rings)	0.00022	0.00011
Supports Mechanics: Service cylinder (transition region)	0.00030	0.00015
Supports Mechanics: TBPX Internal Rings	0.00142	0.00070
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00025	0.00013
Supports Mechanics: TEDD disk	0.00003	0.00001
