OT802_IT701 - Material (outer)

Total (Full volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.24168	0.07872

Total MB (Full volume)

Total per category (Full volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.02844	0.01018
Module	0.12991	0.03408
Supports & Cooling	0.08333	0.03446

Total per category: MB in All OT subdetectors (Full volume)

OTST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.01002	0.00497

Total per category: MB in OTST (Full volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00917	0.00333
Module	0.01901	0.00490
Supports & Cooling	0.01380	0.00557

Total per category: MB in TB2S (Full volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01313	0.00466
Module	0.05706	0.01497
Supports & Cooling	0.03333	0.01498

Total per category: MB in TBPS (Full volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00377	0.00136
Module	0.02628	0.00694
Supports & Cooling	0.01136	0.00374

Total per category: MB in TEDD_1 (Full volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00237	0.00084
Module	0.02756	0.00727
Supports & Cooling	0.01482	0.00520

Total per category: MB in TEDD_2 (Full volume)

Category details: Cabling (Full volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00299	0.00127
Cabling: Hybrid power lines	0.00546	0.00169
Cabling: Optical fibers	0.00061	0.00035
Cabling: Pipe thermistor twisted pairs	0.00010	0.00002

Cabling: MB in TB2S (Full volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00421	0.00169
Cabling: Hybrid power lines	0.00754	0.00226
Cabling: Optical fibers	0.00112	0.00065
Cabling: Pipe thermistor twisted pairs	0.00026	0.00005

Cabling: MB in TBPS (Full volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00120	0.00051
Cabling: Hybrid power lines	0.00219	0.00068
Cabling: Optical fibers	0.00026	0.00015
Cabling: Pipe thermistor twisted pairs	0.00013	0.00002

Cabling: MB in TEDD_1 (Full volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00074	0.00030
Cabling: Hybrid power lines	0.00133	0.00040
Cabling: Optical fibers	0.00020	0.00011
Cabling: Pipe thermistor twisted pairs	0.00010	0.00002

Cabling: MB in TEDD_2 (Full volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00914	0.00378
Cabling: Hybrid power lines	0.01652	0.00503
Cabling: Optical fibers	0.00219	0.00126
Cabling: Pipe thermistor twisted pairs	0.00059	0.00011

Cabling: MB in all subdetectors (Full volume)

Category details: Module (Full volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00412	0.00121
2S Module: FE hybrid spacers	0.00046	0.00017
2S Module: Inactive silicon (around the edges)	0.00029	0.00006
2S Module: Sensor spacers	0.00119	0.00041
2S Module: Sensors	0.00570	0.00116
2S Module: Service hybrids	0.00474	0.00124
2S Module: Supports	0.00252	0.00065

Module: MB in TB2S (Full volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
PS Module: FE hybrid circuits	0.01119	0.00329
PS Module: FE hybrid spacers	0.00258	0.00091
PS Module: Inactive silicon (around the edges)	0.00072	0.00015
PS Module: MPA and Bump bonds	0.00916	0.00181
PS Module: Power hybrid	0.01169	0.00254
PS Module: Readout hybrid circuits	0.00592	0.00174
PS Module: Readout hybrid spacers	0.00068	0.00024
PS Module: Sensor spacers	0.00283	0.00100
PS Module: Sensors	0.00952	0.00193
PS Module: Support plate	0.00278	0.00137

Module: MB in TBPS (Full volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00120	0.00035
2S Module: FE hybrid spacers	0.00013	0.00005
2S Module: Inactive silicon (around the edges)	0.00008	0.00002
2S Module: Sensor spacers	0.00034	0.00012
2S Module: Sensors	0.00166	0.00034
2S Module: Service hybrids	0.00138	0.00036
2S Module: Supports	0.00073	0.00019
PS Module: FE hybrid circuits	0.00390	0.00115
PS Module: FE hybrid spacers	0.00140	0.00049
PS Module: Inactive silicon (around the edges)	0.00025	0.00005
PS Module: MPA and Bump bonds	0.00319	0.00063
PS Module: Power hybrid	0.00407	0.00089
PS Module: Readout hybrid circuits	0.00206	0.00061
PS Module: Readout hybrid spacers	0.00030	0.00010
PS Module: Sensor spacers	0.00129	0.00045
PS Module: Sensors	0.00332	0.00067
PS Module: Support plate	0.00097	0.00048

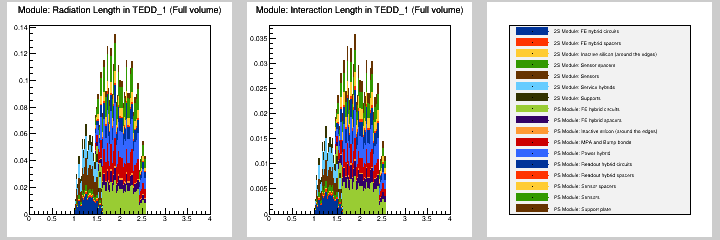

Module: MB in TEDD_1 (Full volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00184	0.00054
2S Module: FE hybrid spacers	0.00025	0.00009
2S Module: Inactive silicon (around the edges)	0.00013	0.00003
2S Module: Sensor spacers	0.00063	0.00022
2S Module: Sensors	0.00255	0.00052
2S Module: Service hybrids	0.00212	0.00056
2S Module: Supports	0.00113	0.00029
PS Module: FE hybrid circuits	0.00356	0.00105
PS Module: FE hybrid spacers	0.00127	0.00044
PS Module: Inactive silicon (around the edges)	0.00023	0.00005
PS Module: MPA and Bump bonds	0.00291	0.00058
PS Module: Power hybrid	0.00372	0.00081
PS Module: Readout hybrid circuits	0.00188	0.00055
PS Module: Readout hybrid spacers	0.00027	0.00010
PS Module: Sensor spacers	0.00118	0.00041
PS Module: Sensors	0.00303	0.00061
PS Module: Support plate	0.00088	0.00043

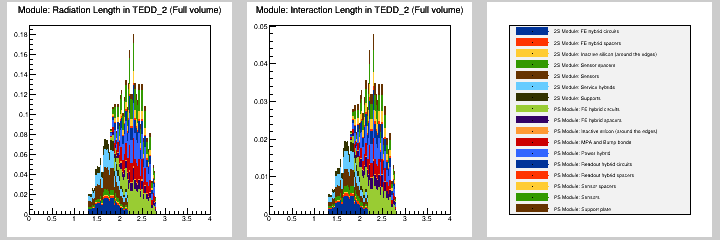

Module: MB in TEDD_2 (Full volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00715	0.00211
2S Module: FE hybrid spacers	0.00083	0.00032
2S Module: Inactive silicon (around the edges)	0.00050	0.00010
2S Module: Sensor spacers	0.00215	0.00074
2S Module: Sensors	0.00991	0.00201
2S Module: Service hybrids	0.00823	0.00216
2S Module: Supports	0.00438	0.00113
PS Module: FE hybrid circuits	0.01865	0.00549
PS Module: FE hybrid spacers	0.00525	0.00184
PS Module: Inactive silicon (around the edges)	0.00120	0.00024
PS Module: MPA and Bump bonds	0.01526	0.00302
PS Module: Power hybrid	0.01947	0.00423
PS Module: Readout hybrid circuits	0.00987	0.00291
PS Module: Readout hybrid spacers	0.00125	0.00044
PS Module: Sensor spacers	0.00530	0.00186
PS Module: Sensors	0.01587	0.00321
PS Module: Support plate	0.00463	0.00228

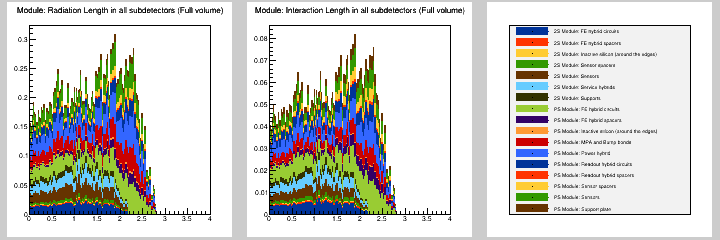

Module: MB in all subdetectors (Full volume)

Category details: Supports & Cooling (Full volume)

OTST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: OTST	0.01002	0.00497

Supports & Cooling: MB in OTST (Full volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00385	0.00065
Supports Mechanics: TB2S Innermost cylinder (horizontal)	0.00219	0.00113
Supports Mechanics: TB2S Ladder	0.00438	0.00207
Supports Mechanics: TB2S Outermost cylinder (horizontal)	0.00132	0.00068
Supports Mechanics: TB2S Rings (Vertical)	0.00207	0.00105

Supports & Cooling: MB in TB2S (Full volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00529	0.00090
Supports Mechanics: TBPS (Layer common)	0.00076	0.00037
Supports Mechanics: TBPS (Module common)	0.01482	0.00734
Supports Mechanics: TBPS (Tilted Ring common)	0.00294	0.00146
Supports Mechanics: TBPS Innermost cylinder (horizontal)	0.00694	0.00357
Supports Mechanics: TBPS Outermost cylinder (horizontal)	0.00258	0.00133

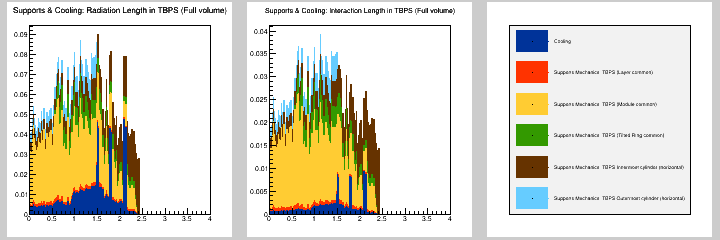

Supports & Cooling: MB in TBPS (Full volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00561	0.00081
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00162	0.00083
Supports Mechanics: TEDD Outermost cylinder (horizontal)	0.00058	0.00030
Supports Mechanics: TEDD disk	0.00356	0.00181

Supports & Cooling: MB in TEDD_1 (Full volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00648	0.00093
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00329	0.00169
Supports Mechanics: TEDD Outermost cylinder (horizontal)	0.00093	0.00048
Supports Mechanics: TEDD disk	0.00412	0.00209

Supports & Cooling: MB in TEDD_2 (Full volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.02123	0.00329
Supports Mechanics: OTST	0.01002	0.00497
Supports Mechanics: TB2S Innermost cylinder (horizontal)	0.00219	0.00113
Supports Mechanics: TB2S Ladder	0.00438	0.00207
Supports Mechanics: TB2S Outermost cylinder (horizontal)	0.00132	0.00068
Supports Mechanics: TB2S Rings (Vertical)	0.00207	0.00105
Supports Mechanics: TBPS (Layer common)	0.00076	0.00037
Supports Mechanics: TBPS (Module common)	0.01482	0.00734
Supports Mechanics: TBPS (Tilted Ring common)	0.00294	0.00146
Supports Mechanics: TBPS Innermost cylinder (horizontal)	0.00694	0.00357
Supports Mechanics: TBPS Outermost cylinder (horizontal)	0.00258	0.00133
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00490	0.00252
Supports Mechanics: TEDD Outermost cylinder (horizontal)	0.00151	0.00078
Supports Mechanics: TEDD disk	0.00768	0.00390

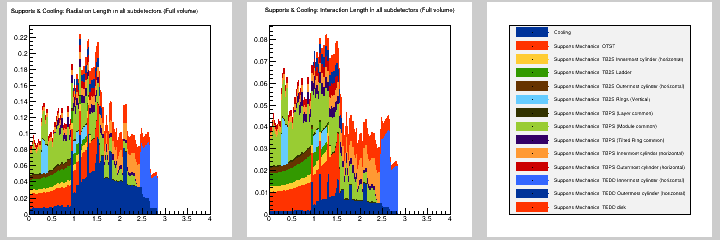

Supports & Cooling: MB in all subdetectors (Full volume)

Total (Tracking volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.19616	0.06023

Total MB (Tracking volume)

Total per category (Tracking volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01267	0.00438
Module	0.12991	0.03408
Supports & Cooling	0.05357	0.02177

Total per category: MB in All OT subdetectors (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00097	0.00031
Supports & Cooling	0.00035	0.00006

Total per category: MB in FPIX_1 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00406	0.00201

Total per category: MB in ITST (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00044	0.00015
Supports & Cooling	0.00022	0.00004

Total per category: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00075	0.00037

Total per category: MB in SERVICE_CYLINDER_ST (Tracking volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00180	0.00061
Module	0.01901	0.00490
Supports & Cooling	0.00862	0.00378

Total per category: MB in TB2S (Tracking volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00882	0.00306
Module	0.05706	0.01497
Supports & Cooling	0.02582	0.01132

Total per category: MB in TBPS (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00038	0.00015
Module	0.02628	0.00694
Supports & Cooling	0.00723	0.00213

Total per category: MB in TEDD_1 (Tracking volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00026	0.00010
Module	0.02756	0.00727
Supports & Cooling	0.00651	0.00206

Total per category: MB in TEDD_2 (Tracking volume)

Category details: Cabling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00019	0.00007
Cabling: High voltage lines (routed)	0.00010	0.00004
Cabling: Optical fibers	0.00011	0.00006
Cabling: Serial power chains (routed)	0.00056	0.00014

Cabling: MB in FPIX_1 (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00012	0.00004
Cabling: High voltage lines	0.00007	0.00003
Cabling: Optical fibers	0.00007	0.00004
Cabling: Serial power chains	0.00019	0.00005

Cabling: MB in PXB (Tracking volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00057	0.00021
Cabling: Hybrid power lines	0.00100	0.00029
Cabling: Optical fibers	0.00019	0.00011
Cabling: Pipe thermistor twisted pairs	0.00004	0.00001

Cabling: MB in TB2S (Tracking volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00278	0.00106
Cabling: Hybrid power lines	0.00489	0.00143
Cabling: Optical fibers	0.00090	0.00052
Cabling: Pipe thermistor twisted pairs	0.00025	0.00005

Cabling: MB in TBPS (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00010	0.00004
Cabling: Hybrid power lines	0.00018	0.00005
Cabling: Optical fibers	0.00008	0.00005
Cabling: Pipe thermistor twisted pairs	0.00002	0.00000

Cabling: MB in TEDD_1 (Tracking volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: High voltage lines	0.00007	0.00003
Cabling: Hybrid power lines	0.00012	0.00004
Cabling: Optical fibers	0.00006	0.00003
Cabling: Pipe thermistor twisted pairs	0.00002	0.00000

Cabling: MB in TEDD_2 (Tracking volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00031	0.00010
Cabling: High voltage lines	0.00358	0.00136
Cabling: High voltage lines (routed)	0.00010	0.00004
Cabling: Hybrid power lines	0.00619	0.00181
Cabling: Optical fibers	0.00140	0.00081
Cabling: Pipe thermistor twisted pairs	0.00033	0.00006
Cabling: Serial power chains	0.00019	0.00005
Cabling: Serial power chains (routed)	0.00056	0.00014

Cabling: MB in all subdetectors (Tracking volume)

Category details: Module (Tracking volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00412	0.00121
2S Module: FE hybrid spacers	0.00046	0.00017
2S Module: Inactive silicon (around the edges)	0.00029	0.00006
2S Module: Sensor spacers	0.00119	0.00041
2S Module: Sensors	0.00570	0.00116
2S Module: Service hybrids	0.00474	0.00124
2S Module: Supports	0.00252	0.00065

Module: MB in TB2S (Tracking volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
PS Module: FE hybrid circuits	0.01119	0.00329
PS Module: FE hybrid spacers	0.00258	0.00091
PS Module: Inactive silicon (around the edges)	0.00072	0.00015
PS Module: MPA and Bump bonds	0.00916	0.00181
PS Module: Power hybrid	0.01169	0.00254
PS Module: Readout hybrid circuits	0.00592	0.00174
PS Module: Readout hybrid spacers	0.00068	0.00024
PS Module: Sensor spacers	0.00283	0.00100
PS Module: Sensors	0.00952	0.00193
PS Module: Support plate	0.00278	0.00137

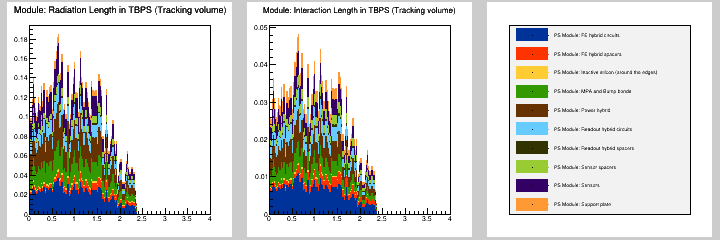

Module: MB in TBPS (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00120	0.00035
2S Module: FE hybrid spacers	0.00013	0.00005
2S Module: Inactive silicon (around the edges)	0.00008	0.00002
2S Module: Sensor spacers	0.00034	0.00012
2S Module: Sensors	0.00166	0.00034
2S Module: Service hybrids	0.00138	0.00036
2S Module: Supports	0.00073	0.00019
PS Module: FE hybrid circuits	0.00390	0.00115
PS Module: FE hybrid spacers	0.00140	0.00049
PS Module: Inactive silicon (around the edges)	0.00025	0.00005
PS Module: MPA and Bump bonds	0.00319	0.00063
PS Module: Power hybrid	0.00407	0.00089
PS Module: Readout hybrid circuits	0.00206	0.00061
PS Module: Readout hybrid spacers	0.00030	0.00010
PS Module: Sensor spacers	0.00129	0.00045
PS Module: Sensors	0.00332	0.00067
PS Module: Support plate	0.00097	0.00048

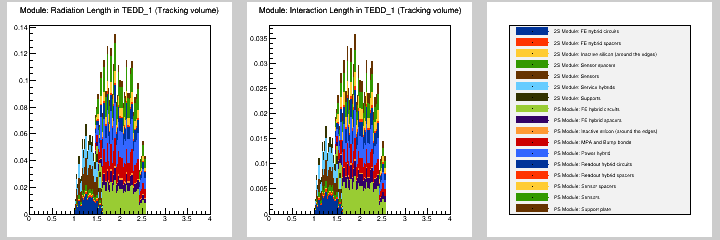

Module: MB in TEDD_1 (Tracking volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00184	0.00054
2S Module: FE hybrid spacers	0.00025	0.00009
2S Module: Inactive silicon (around the edges)	0.00013	0.00003
2S Module: Sensor spacers	0.00063	0.00022
2S Module: Sensors	0.00255	0.00052
2S Module: Service hybrids	0.00212	0.00056
2S Module: Supports	0.00113	0.00029
PS Module: FE hybrid circuits	0.00356	0.00105
PS Module: FE hybrid spacers	0.00127	0.00044
PS Module: Inactive silicon (around the edges)	0.00023	0.00005
PS Module: MPA and Bump bonds	0.00291	0.00058
PS Module: Power hybrid	0.00372	0.00081
PS Module: Readout hybrid circuits	0.00188	0.00055
PS Module: Readout hybrid spacers	0.00027	0.00010
PS Module: Sensor spacers	0.00118	0.00041
PS Module: Sensors	0.00303	0.00061
PS Module: Support plate	0.00088	0.00043

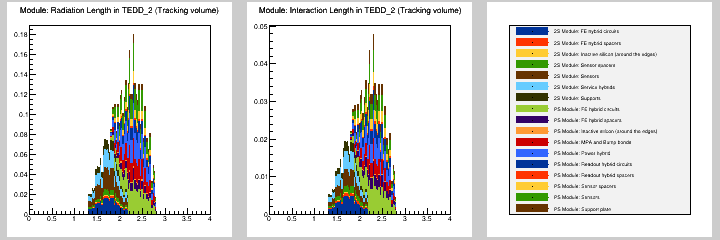

Module: MB in TEDD_2 (Tracking volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
2S Module: FE hybrid circuits	0.00715	0.00211
2S Module: FE hybrid spacers	0.00083	0.00032
2S Module: Inactive silicon (around the edges)	0.00050	0.00010
2S Module: Sensor spacers	0.00215	0.00074
2S Module: Sensors	0.00991	0.00201
2S Module: Service hybrids	0.00823	0.00216
2S Module: Supports	0.00438	0.00113
PS Module: FE hybrid circuits	0.01865	0.00549
PS Module: FE hybrid spacers	0.00525	0.00184
PS Module: Inactive silicon (around the edges)	0.00120	0.00024
PS Module: MPA and Bump bonds	0.01526	0.00302
PS Module: Power hybrid	0.01947	0.00423
PS Module: Readout hybrid circuits	0.00987	0.00291
PS Module: Readout hybrid spacers	0.00125	0.00044
PS Module: Sensor spacers	0.00530	0.00186
PS Module: Sensors	0.01587	0.00321
PS Module: Support plate	0.00463	0.00228

Module: MB in all subdetectors (Tracking volume)

Category details: Supports & Cooling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Pipes & Coolant (routed)	0.00035	0.00006

Supports & Cooling: MB in FPIX_1 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: ITST (cylinder around TEPX)	0.00347	0.00172
Supports Mechanics: ITST (flange)	0.00059	0.00029

Supports & Cooling: MB in ITST (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Pipes & Coolant (routed)	0.00022	0.00004

Supports & Cooling: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: Service cylinder (around TEPX)	0.00065	0.00032
Supports Mechanics: Service cylinder (transition region)	0.00010	0.00005

Supports & Cooling: MB in SERVICE_CYLINDER_ST (Tracking volume)

TB2S

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00152	0.00027
Supports Mechanics: TB2S Innermost cylinder (horizontal)	0.00219	0.00113
Supports Mechanics: TB2S Ladder	0.00310	0.00146
Supports Mechanics: TB2S Rings (Vertical)	0.00181	0.00092

Supports & Cooling: MB in TB2S (Tracking volume)

TBPS

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00472	0.00081
Supports Mechanics: TBPS (Layer common)	0.00076	0.00037
Supports Mechanics: TBPS (Module common)	0.01482	0.00734
Supports Mechanics: TBPS (Tilted Ring common)	0.00294	0.00146
Supports Mechanics: TBPS Outermost cylinder (horizontal)	0.00258	0.00133

Supports & Cooling: MB in TBPS (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00426	0.00061
Supports Mechanics: TEDD disk	0.00298	0.00151

Supports & Cooling: MB in TEDD_1 (Tracking volume)

TEDD_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00342	0.00049
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00080	0.00041
Supports Mechanics: TEDD disk	0.00229	0.00116

Supports & Cooling: MB in TEDD_2 (Tracking volume)

All OT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.01392	0.00219
Cooling: Pipes & Coolant (routed)	0.00058	0.00009
Supports Mechanics: ITST (cylinder around TEPX)	0.00347	0.00172
Supports Mechanics: ITST (flange)	0.00059	0.00029
Supports Mechanics: Service cylinder (around TEPX)	0.00065	0.00032
Supports Mechanics: Service cylinder (transition region)	0.00010	0.00005
Supports Mechanics: TB2S Innermost cylinder (horizontal)	0.00219	0.00113
Supports Mechanics: TB2S Ladder	0.00310	0.00146
Supports Mechanics: TB2S Rings (Vertical)	0.00181	0.00092
Supports Mechanics: TBPS (Layer common)	0.00076	0.00037
Supports Mechanics: TBPS (Module common)	0.01482	0.00734
Supports Mechanics: TBPS (Tilted Ring common)	0.00294	0.00146
Supports Mechanics: TBPS Outermost cylinder (horizontal)	0.00258	0.00133
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00080	0.00041
Supports Mechanics: TEDD disk	0.00527	0.00268

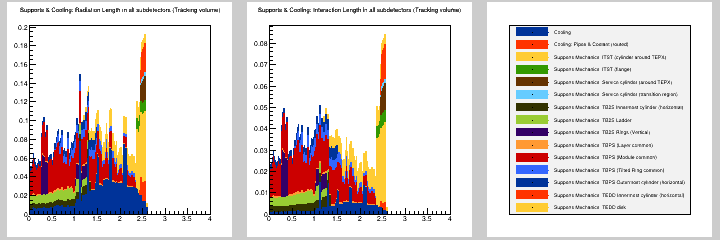

Supports & Cooling: MB in all subdetectors (Tracking volume)

Material distribution

Radiation length material map

Interaction length material map

Nuclear interactions

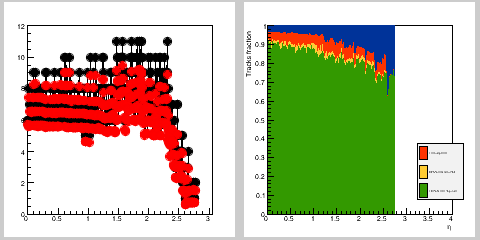

Hits occupancy & track efficiency for hadrons

Summary

Region	C	I	F	VF	VVF
etaMin	0.0	0.8	1.6	2.4	3.2
etaMax	0.8	1.6	2.4	3.2	4.0

Clean pions	C	I	F	VF	VVF
1 hit required	3.7722	6.3667	13.2829	23.2091	-nan
66%% hits required	8.9539	12.6662	18.7184	26.6724	-nan
100%% hits required	10.6159	14.9441	20.5226	27.0815	-nan

Material	C	I	F	VF	VVF
Rad. length	0.2876	0.4788	0.3609	0.0798	0.0000
Int. length	0.0974	0.1611	0.1067	0.0279	0.0000
Photon conversion	0.2004	0.3109	0.2447	0.0602	0.0000
