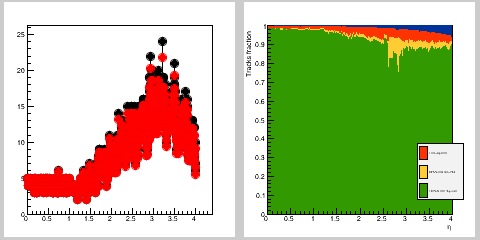

OT802_IT701

Total (Full volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.35585	0.10739

Total per category (Full volume)

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.07221	0.01944
Module	0.10320	0.01518
Supports & Cooling	0.18045	0.07277

Total per category: MB in All IT subdetectors (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.03257	0.00969
Module	0.05342	0.00784
Supports & Cooling	0.06875	0.02582

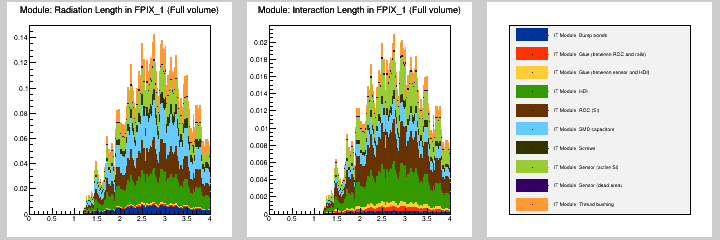

Total per category: MB in FPIX_1 (Full volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01766	0.00409
Module	0.01533	0.00232
Supports & Cooling	0.03001	0.01120

Total per category: MB in FPIX_2 (Full volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.03438	0.01703

Total per category: MB in ITST (Full volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.02197	0.00567
Module	0.03444	0.00502
Supports & Cooling	0.03399	0.01213

Total per category: MB in PXB (Full volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.01332	0.00660

Total per category: MB in SERVICE_CYLINDER_ST (Full volume)

Category details: Cabling (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00312	0.00106
Cabling: E-links	0.00078	0.00008
Cabling: GBT + DCDC converter	0.01205	0.00338
Cabling: High voltage lines (on dees)	0.00090	0.00036
Cabling: High voltage lines (routed)	0.00170	0.00069
Cabling: Optical fibers	0.00178	0.00103
Cabling: Serial power chains (on dees)	0.00314	0.00079
Cabling: Serial power chains (routed)	0.00912	0.00231

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00031	0.00010
Cabling: Dee PCB panel	0.01237	0.00255
Cabling: E-links	0.00006	0.00001
Cabling: GBT + DCDC converter	0.00306	0.00086
Cabling: High voltage lines (routed)	0.00026	0.00010
Cabling: Optical fibers	0.00018	0.00010
Cabling: Serial power chains (routed)	0.00144	0.00036

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00141	0.00048
Cabling: E-links	0.00541	0.00056
Cabling: GBT + DCDC converter	0.00616	0.00173
Cabling: High voltage lines	0.00231	0.00093
Cabling: Optical fibers	0.00081	0.00047
Cabling: Serial power chains	0.00587	0.00149

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00484	0.00164
Cabling: Dee PCB panel	0.01237	0.00255
Cabling: E-links	0.00625	0.00065
Cabling: GBT + DCDC converter	0.02126	0.00596
Cabling: High voltage lines	0.00231	0.00093
Cabling: High voltage lines (on dees)	0.00090	0.00036
Cabling: High voltage lines (routed)	0.00195	0.00079
Cabling: Optical fibers	0.00277	0.00159
Cabling: Serial power chains	0.00587	0.00149
Cabling: Serial power chains (on dees)	0.00314	0.00079
Cabling: Serial power chains (routed)	0.01056	0.00267

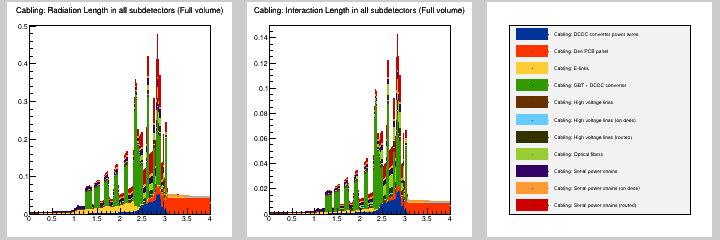

Cabling: MB in all subdetectors (Full volume)

Category details: Module (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00261	0.00014
IT Module: Glue (between ROC and rails)	0.00046	0.00022
IT Module: Glue (between sensor and HDI)	0.00046	0.00022
IT Module: HDI	0.01017	0.00172
IT Module: ROC (Si)	0.00926	0.00188
IT Module: SMD capacitors	0.01100	0.00088
IT Module: Screws	0.00335	0.00035
IT Module: Sensor (active Si)	0.00831	0.00168
IT Module: Sensor (dead area)	0.00045	0.00009
IT Module: Thread bushing	0.00735	0.00067

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00082	0.00004
IT Module: Glue (between ROC and rails)	0.00015	0.00007
IT Module: Glue (between sensor and HDI)	0.00015	0.00007
IT Module: HDI	0.00320	0.00054
IT Module: ROC (Si)	0.00290	0.00059
IT Module: SMD capacitors	0.00332	0.00026
IT Module: Screws	0.00064	0.00007
IT Module: Sensor (active Si)	0.00262	0.00053
IT Module: Sensor (dead area)	0.00014	0.00003
IT Module: Thread bushing	0.00140	0.00013

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00166	0.00009
IT Module: Glue (between ROC and rails)	0.00029	0.00014
IT Module: Glue (between sensor and HDI)	0.00029	0.00014
IT Module: HDI	0.00648	0.00109
IT Module: ROC (Si)	0.00590	0.00120
IT Module: SMD capacitors	0.00706	0.00056
IT Module: Screws	0.00228	0.00024
IT Module: Sensor (active Si)	0.00529	0.00107
IT Module: Sensor (dead area)	0.00017	0.00003
IT Module: Thread bushing	0.00501	0.00046

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00509	0.00027
IT Module: Glue (between ROC and rails)	0.00090	0.00042
IT Module: Glue (between sensor and HDI)	0.00090	0.00042
IT Module: HDI	0.01985	0.00335
IT Module: ROC (Si)	0.01807	0.00366
IT Module: SMD capacitors	0.02138	0.00170
IT Module: Screws	0.00627	0.00066
IT Module: Sensor (active Si)	0.01622	0.00329
IT Module: Sensor (dead area)	0.00075	0.00015
IT Module: Thread bushing	0.01376	0.00126

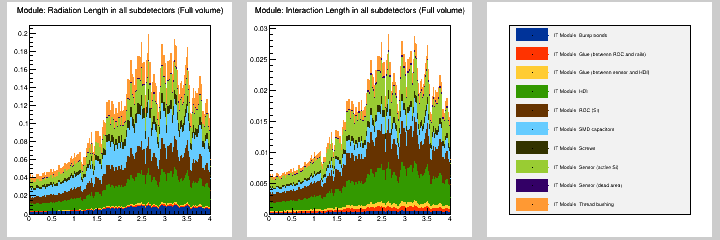

Module: MB in all subdetectors (Full volume)

Category details: Supports & Cooling (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (Graphite plate)	0.00303	0.00154
Cooling: Cooling blocks (Si3N4 plate)	0.01382	0.00368
Cooling: Pipes & Coolant (on dees)	0.01005	0.00162
Cooling: Pipes & Coolant (routed)	0.00577	0.00093
Supports Mechanics: Dee CFRP panel	0.01794	0.00889
Supports Mechanics: Dee Carbon foam panel	0.01502	0.00763
Supports Mechanics: Disk CFK extension	0.00311	0.00154

Supports & Cooling: MB in FPIX_1 (Full volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN plate)	0.00659	0.00182
Cooling: Cooling blocks (Graphite plate)	0.00947	0.00481
Cooling: Pipes & Coolant (on dees)	0.00603	0.00097
Cooling: Pipes & Coolant (routed)	0.00100	0.00016
Supports Mechanics: Dee Airex foam	0.00076	0.00038
Supports Mechanics: Dee CFRP panel	0.00433	0.00214
Supports Mechanics: Disk CFK extension	0.00059	0.00029
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00112	0.00056

Supports & Cooling: MB in FPIX_2 (Full volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: ITST (cylinder around TBPX)	0.00316	0.00156
Supports Mechanics: ITST (cylinder around TEPX)	0.01090	0.00540
Supports Mechanics: ITST (cylinder around TFPX)	0.01922	0.00952
Supports Mechanics: ITST (flange)	0.00110	0.00055

Supports & Cooling: MB in ITST (Full volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN rails)	0.00423	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00401	0.00204
Cooling: Cooling blocks (CF plate)	0.00889	0.00452
Cooling: Pipes & Coolant (on ladders)	0.00681	0.00105
Cooling: Pipes & Coolant (routed)	0.00485	0.00078
Supports Mechanics: TBPX External Cylinder	0.00371	0.00184
Supports Mechanics: TBPX Internal Rings	0.00149	0.00074

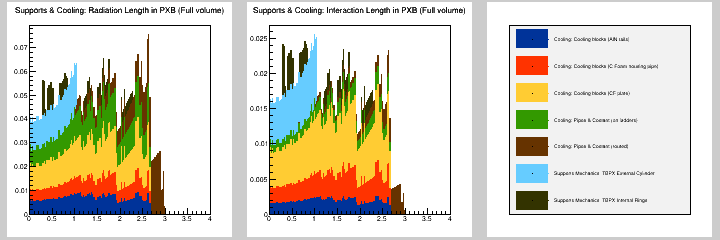

Supports & Cooling: MB in PXB (Full volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: Service cylinder (around TEPX)	0.00396	0.00196
Supports Mechanics: Service cylinder (around TFPX)	0.00777	0.00385
Supports Mechanics: Service cylinder (reinf. rings)	0.00113	0.00056
Supports Mechanics: Service cylinder (transition region)	0.00046	0.00023

Supports & Cooling: MB in SERVICE_CYLINDER_ST (Full volume)

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN plate)	0.00659	0.00182
Cooling: Cooling blocks (AlN rails)	0.00423	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00401	0.00204
Cooling: Cooling blocks (CF plate)	0.00889	0.00452
Cooling: Cooling blocks (Graphite plate)	0.01250	0.00635
Cooling: Cooling blocks (Si3N4 plate)	0.01382	0.00368
Cooling: Pipes & Coolant (on dees)	0.01608	0.00259
Cooling: Pipes & Coolant (on ladders)	0.00681	0.00105
Cooling: Pipes & Coolant (routed)	0.01162	0.00187
Supports Mechanics: Dee Airex foam	0.00076	0.00038
Supports Mechanics: Dee CFRP panel	0.02227	0.01103
Supports Mechanics: Dee Carbon foam panel	0.01502	0.00763
Supports Mechanics: Disk CFK extension	0.00370	0.00183
Supports Mechanics: ITST (cylinder around TBPX)	0.00316	0.00156
Supports Mechanics: ITST (cylinder around TEPX)	0.01090	0.00540
Supports Mechanics: ITST (cylinder around TFPX)	0.01922	0.00952
Supports Mechanics: ITST (flange)	0.00110	0.00055
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00112	0.00056
Supports Mechanics: Service cylinder (around TEPX)	0.00396	0.00196
Supports Mechanics: Service cylinder (around TFPX)	0.00777	0.00385
Supports Mechanics: Service cylinder (reinf. rings)	0.00113	0.00056
Supports Mechanics: Service cylinder (transition region)	0.00046	0.00023
Supports Mechanics: TBPX External Cylinder	0.00371	0.00184
Supports Mechanics: TBPX Internal Rings	0.00149	0.00074

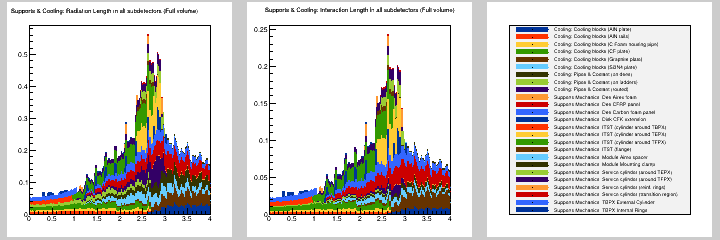

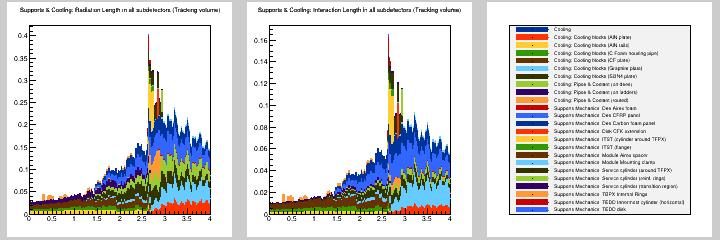

Supports & Cooling: MB in all subdetectors (Full volume)

Total (Tracking volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.24482	0.06596

Total per category (Tracking volume)

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.02696	0.00678
Module	0.10320	0.01518
Supports & Cooling	0.11467	0.04400

Total per category: MB in All IT subdetectors (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01102	0.00325
Module	0.05342	0.00784
Supports & Cooling	0.05702	0.02169

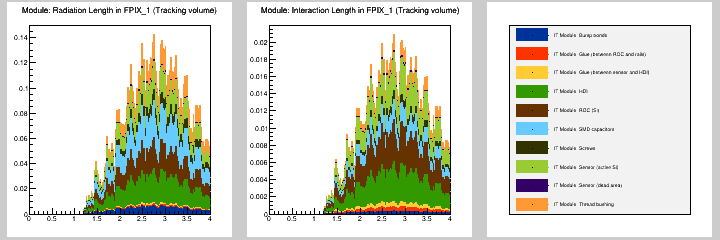

Total per category: MB in FPIX_1 (Tracking volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00868	0.00179
Module	0.01533	0.00232
Supports & Cooling	0.02510	0.00970

Total per category: MB in FPIX_2 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00269	0.00133

Total per category: MB in ITST (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00726	0.00174
Module	0.03444	0.00502
Supports & Cooling	0.02660	0.00967

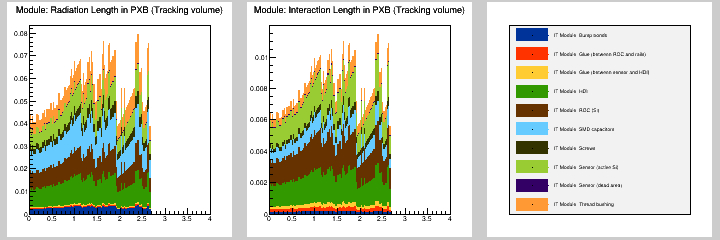

Total per category: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00289	0.00143

Total per category: MB in SERVICE_CYLINDER_ST (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00000	0.00000
Supports & Cooling	0.00036	0.00017

Total per category: MB in TEDD_1 (Tracking volume)

Category details: Cabling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00104	0.00035
Cabling: E-links	0.00049	0.00005
Cabling: GBT + DCDC converter	0.00176	0.00049
Cabling: High voltage lines (on dees)	0.00079	0.00032
Cabling: High voltage lines (routed)	0.00056	0.00023
Cabling: Optical fibers	0.00060	0.00034
Cabling: Serial power chains (on dees)	0.00276	0.00070
Cabling: Serial power chains (routed)	0.00303	0.00077

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: Dee PCB panel	0.00867	0.00179
Cabling: E-links	0.00000	0.00000
Cabling: High voltage lines (routed)	0.00000	0.00000
Cabling: Serial power chains (routed)	0.00000	0.00000

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00052	0.00018
Cabling: E-links	0.00283	0.00029
Cabling: High voltage lines	0.00111	0.00045
Cabling: Optical fibers	0.00030	0.00017
Cabling: Serial power chains	0.00249	0.00064

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: Pipe thermistor twisted pairs	0.00000	0.00000

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00157	0.00053
Cabling: Dee PCB panel	0.00867	0.00179
Cabling: E-links	0.00331	0.00035
Cabling: GBT + DCDC converter	0.00176	0.00049
Cabling: High voltage lines	0.00111	0.00045
Cabling: High voltage lines (on dees)	0.00079	0.00032
Cabling: High voltage lines (routed)	0.00056	0.00023
Cabling: Optical fibers	0.00090	0.00052
Cabling: Pipe thermistor twisted pairs	0.00000	0.00000
Cabling: Serial power chains	0.00249	0.00064
Cabling: Serial power chains (on dees)	0.00276	0.00070
Cabling: Serial power chains (routed)	0.00303	0.00077

Cabling: MB in all subdetectors (Tracking volume)

Category details: Module (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00261	0.00014
IT Module: Glue (between ROC and rails)	0.00046	0.00022
IT Module: Glue (between sensor and HDI)	0.00046	0.00022
IT Module: HDI	0.01017	0.00172
IT Module: ROC (Si)	0.00926	0.00188
IT Module: SMD capacitors	0.01100	0.00088
IT Module: Screws	0.00335	0.00035
IT Module: Sensor (active Si)	0.00831	0.00168
IT Module: Sensor (dead area)	0.00045	0.00009
IT Module: Thread bushing	0.00735	0.00067

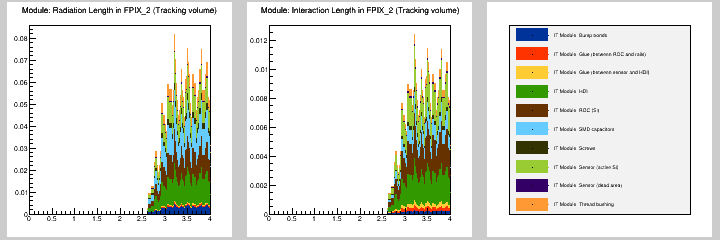

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00082	0.00004
IT Module: Glue (between ROC and rails)	0.00015	0.00007
IT Module: Glue (between sensor and HDI)	0.00015	0.00007
IT Module: HDI	0.00320	0.00054
IT Module: ROC (Si)	0.00290	0.00059
IT Module: SMD capacitors	0.00332	0.00026
IT Module: Screws	0.00064	0.00007
IT Module: Sensor (active Si)	0.00262	0.00053
IT Module: Sensor (dead area)	0.00014	0.00003
IT Module: Thread bushing	0.00140	0.00013

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00166	0.00009
IT Module: Glue (between ROC and rails)	0.00029	0.00014
IT Module: Glue (between sensor and HDI)	0.00029	0.00014
IT Module: HDI	0.00648	0.00109
IT Module: ROC (Si)	0.00590	0.00120
IT Module: SMD capacitors	0.00706	0.00056
IT Module: Screws	0.00228	0.00024
IT Module: Sensor (active Si)	0.00529	0.00107
IT Module: Sensor (dead area)	0.00017	0.00003
IT Module: Thread bushing	0.00501	0.00046

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00509	0.00027
IT Module: Glue (between ROC and rails)	0.00090	0.00042
IT Module: Glue (between sensor and HDI)	0.00090	0.00042
IT Module: HDI	0.01985	0.00335
IT Module: ROC (Si)	0.01807	0.00366
IT Module: SMD capacitors	0.02138	0.00170
IT Module: Screws	0.00627	0.00066
IT Module: Sensor (active Si)	0.01622	0.00329
IT Module: Sensor (dead area)	0.00075	0.00015
IT Module: Thread bushing	0.01376	0.00126

Module: MB in all subdetectors (Tracking volume)

Category details: Supports & Cooling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (Graphite plate)	0.00303	0.00154
Cooling: Cooling blocks (Si3N4 plate)	0.01382	0.00368
Cooling: Pipes & Coolant (on dees)	0.00883	0.00142
Cooling: Pipes & Coolant (routed)	0.00192	0.00031
Supports Mechanics: Dee CFRP panel	0.01576	0.00780
Supports Mechanics: Dee Carbon foam panel	0.01319	0.00670
Supports Mechanics: Disk CFK extension	0.00048	0.00024

Supports & Cooling: MB in FPIX_1 (Tracking volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN plate)	0.00659	0.00182
Cooling: Cooling blocks (Graphite plate)	0.00947	0.00481
Cooling: Pipes & Coolant (on dees)	0.00423	0.00068
Cooling: Pipes & Coolant (routed)	0.00000	0.00000
Supports Mechanics: Dee Airex foam	0.00054	0.00027
Supports Mechanics: Dee CFRP panel	0.00303	0.00150
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00112	0.00056

Supports & Cooling: MB in FPIX_2 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: ITST (cylinder around TFPX)	0.00236	0.00117
Supports Mechanics: ITST (flange)	0.00033	0.00017

Supports & Cooling: MB in ITST (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN rails)	0.00423	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00401	0.00204
Cooling: Cooling blocks (CF plate)	0.00889	0.00452
Cooling: Pipes & Coolant (on ladders)	0.00681	0.00105
Cooling: Pipes & Coolant (routed)	0.00124	0.00020
Supports Mechanics: TBPX Internal Rings	0.00142	0.00070

Supports & Cooling: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: Service cylinder (around TFPX)	0.00237	0.00117
Supports Mechanics: Service cylinder (reinf. rings)	0.00022	0.00011
Supports Mechanics: Service cylinder (transition region)	0.00030	0.00015

Supports & Cooling: MB in SERVICE_CYLINDER_ST (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00004	0.00001
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00029	0.00015
Supports Mechanics: TEDD disk	0.00003	0.00001

Supports & Cooling: MB in TEDD_1 (Tracking volume)

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00004	0.00001
Cooling: Cooling blocks (AlN plate)	0.00659	0.00182
Cooling: Cooling blocks (AlN rails)	0.00423	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00401	0.00204
Cooling: Cooling blocks (CF plate)	0.00889	0.00452
Cooling: Cooling blocks (Graphite plate)	0.01250	0.00635
Cooling: Cooling blocks (Si3N4 plate)	0.01382	0.00368
Cooling: Pipes & Coolant (on dees)	0.01306	0.00211
Cooling: Pipes & Coolant (on ladders)	0.00681	0.00105
Cooling: Pipes & Coolant (routed)	0.00316	0.00051
Supports Mechanics: Dee Airex foam	0.00054	0.00027
Supports Mechanics: Dee CFRP panel	0.01879	0.00931
Supports Mechanics: Dee Carbon foam panel	0.01319	0.00670
Supports Mechanics: Disk CFK extension	0.00048	0.00024
Supports Mechanics: ITST (cylinder around TFPX)	0.00236	0.00117
Supports Mechanics: ITST (flange)	0.00033	0.00017
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00112	0.00056
Supports Mechanics: Service cylinder (around TFPX)	0.00237	0.00117
Supports Mechanics: Service cylinder (reinf. rings)	0.00022	0.00011
Supports Mechanics: Service cylinder (transition region)	0.00030	0.00015
Supports Mechanics: TBPX Internal Rings	0.00142	0.00070
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00029	0.00015
Supports Mechanics: TEDD disk	0.00003	0.00001
