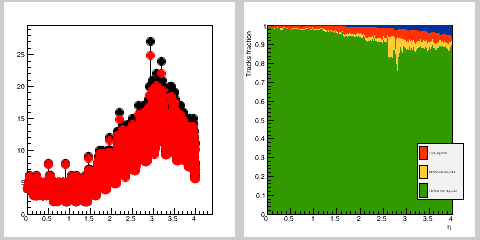

OT805_IT640

Total (Full volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.35149	0.10613

Total per category (Full volume)

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.07067	0.01900
Module	0.10230	0.01507
Supports & Cooling	0.17852	0.07206

Total per category: MB in All IT subdetectors (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.03151	0.00938
Module	0.05224	0.00767
Supports & Cooling	0.06688	0.02511

Total per category: MB in FPIX_1 (Full volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01759	0.00406
Module	0.01551	0.00235
Supports & Cooling	0.03027	0.01131

Total per category: MB in FPIX_2 (Full volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.03428	0.01697

Total per category: MB in ITST (Full volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.02157	0.00556
Module	0.03456	0.00505
Supports & Cooling	0.03375	0.01207

Total per category: MB in PXB (Full volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.01334	0.00661

Total per category: MB in SERVICE_CYLINDER_ST (Full volume)

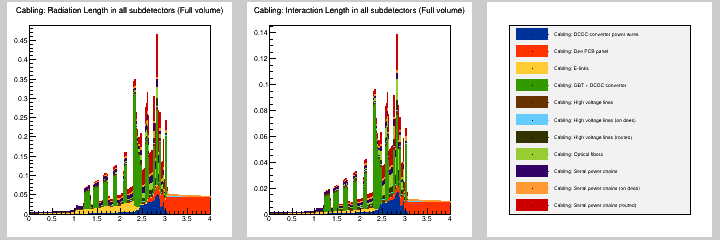

Category details: Cabling (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00303	0.00103
Cabling: E-links	0.00077	0.00008
Cabling: GBT + DCDC converter	0.01152	0.00323
Cabling: High voltage lines (on dees)	0.00087	0.00035
Cabling: High voltage lines (routed)	0.00165	0.00067
Cabling: Optical fibers	0.00173	0.00100
Cabling: Serial power chains (on dees)	0.00306	0.00077
Cabling: Serial power chains (routed)	0.00888	0.00224

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00030	0.00010
Cabling: Dee PCB panel	0.01241	0.00256
Cabling: E-links	0.00006	0.00001
Cabling: GBT + DCDC converter	0.00297	0.00083
Cabling: High voltage lines (routed)	0.00025	0.00010
Cabling: Optical fibers	0.00017	0.00010
Cabling: Serial power chains (routed)	0.00142	0.00036

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00138	0.00047
Cabling: E-links	0.00530	0.00055
Cabling: GBT + DCDC converter	0.00607	0.00170
Cabling: High voltage lines	0.00227	0.00092
Cabling: Optical fibers	0.00079	0.00045
Cabling: Serial power chains	0.00576	0.00147

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00471	0.00160
Cabling: Dee PCB panel	0.01241	0.00256
Cabling: E-links	0.00613	0.00064
Cabling: GBT + DCDC converter	0.02056	0.00577
Cabling: High voltage lines	0.00227	0.00092
Cabling: High voltage lines (on dees)	0.00087	0.00035
Cabling: High voltage lines (routed)	0.00190	0.00077
Cabling: Optical fibers	0.00269	0.00155
Cabling: Serial power chains	0.00576	0.00147
Cabling: Serial power chains (on dees)	0.00306	0.00077
Cabling: Serial power chains (routed)	0.01029	0.00260

Cabling: MB in all subdetectors (Full volume)

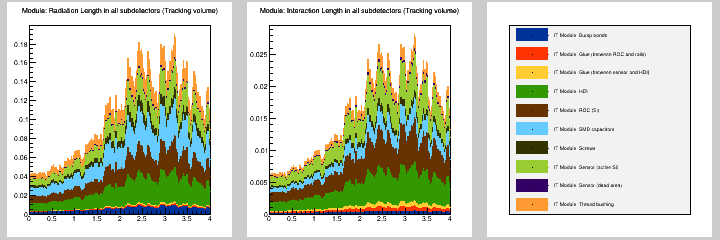

Category details: Module (Full volume)

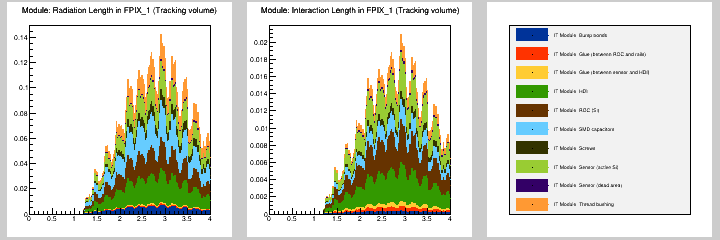

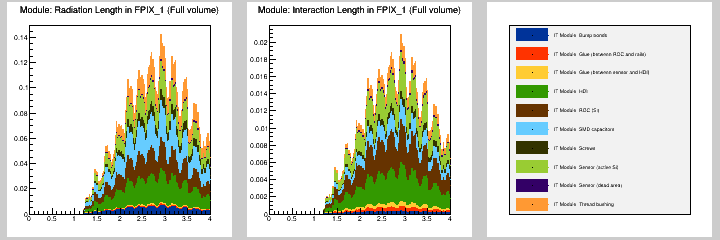

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00254	0.00013
IT Module: Glue (between ROC and rails)	0.00045	0.00021
IT Module: Glue (between sensor and HDI)	0.00045	0.00021
IT Module: HDI	0.00992	0.00167
IT Module: ROC (Si)	0.00903	0.00183
IT Module: SMD capacitors	0.01073	0.00085
IT Module: Screws	0.00326	0.00034
IT Module: Sensor (active Si)	0.00811	0.00164
IT Module: Sensor (dead area)	0.00059	0.00012
IT Module: Thread bushing	0.00716	0.00066

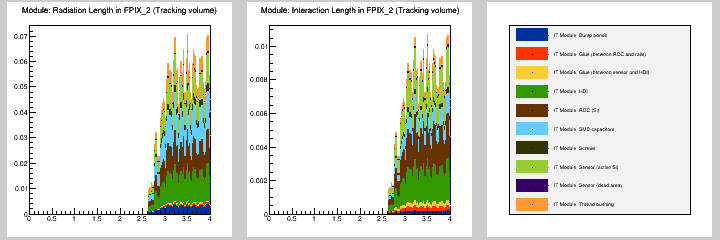

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00083	0.00004
IT Module: Glue (between ROC and rails)	0.00015	0.00007
IT Module: Glue (between sensor and HDI)	0.00015	0.00007
IT Module: HDI	0.00324	0.00055
IT Module: ROC (Si)	0.00294	0.00059
IT Module: SMD capacitors	0.00336	0.00027
IT Module: Screws	0.00065	0.00007
IT Module: Sensor (active Si)	0.00265	0.00054
IT Module: Sensor (dead area)	0.00014	0.00003
IT Module: Thread bushing	0.00142	0.00013

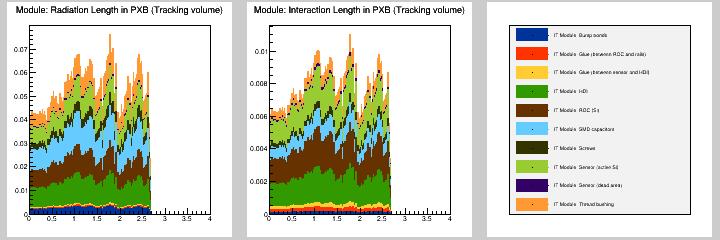

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00166	0.00009
IT Module: Glue (between ROC and rails)	0.00029	0.00014
IT Module: Glue (between sensor and HDI)	0.00029	0.00014
IT Module: HDI	0.00646	0.00109
IT Module: ROC (Si)	0.00588	0.00119
IT Module: SMD capacitors	0.00703	0.00056
IT Module: Screws	0.00227	0.00024
IT Module: Sensor (active Si)	0.00528	0.00107
IT Module: Sensor (dead area)	0.00040	0.00008
IT Module: Thread bushing	0.00499	0.00046

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00503	0.00027
IT Module: Glue (between ROC and rails)	0.00089	0.00041
IT Module: Glue (between sensor and HDI)	0.00089	0.00041
IT Module: HDI	0.01961	0.00331
IT Module: ROC (Si)	0.01785	0.00362
IT Module: SMD capacitors	0.02112	0.00168
IT Module: Screws	0.00618	0.00065
IT Module: Sensor (active Si)	0.01603	0.00325
IT Module: Sensor (dead area)	0.00114	0.00023
IT Module: Thread bushing	0.01356	0.00124

Module: MB in all subdetectors (Full volume)

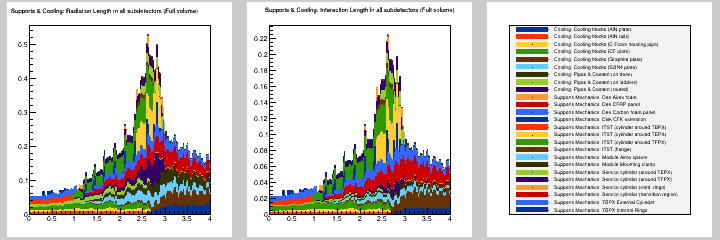

Category details: Supports & Cooling (Full volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (Graphite plate)	0.00296	0.00150
Cooling: Cooling blocks (Si3N4 plate)	0.01347	0.00358
Cooling: Pipes & Coolant (on dees)	0.00980	0.00158
Cooling: Pipes & Coolant (routed)	0.00562	0.00090
Supports Mechanics: Dee CFRP panel	0.01749	0.00866
Supports Mechanics: Dee Carbon foam panel	0.01464	0.00744
Supports Mechanics: Disk CFK extension	0.00291	0.00144

Supports & Cooling: MB in FPIX_1 (Full volume)

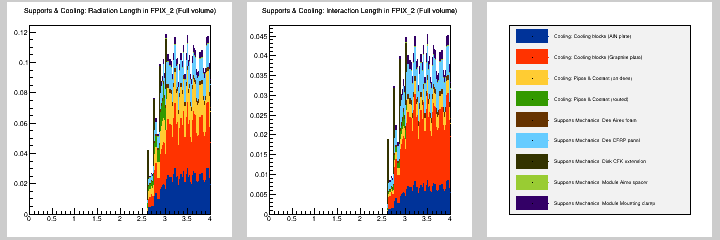

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN plate)	0.00667	0.00185
Cooling: Cooling blocks (Graphite plate)	0.00958	0.00487
Cooling: Pipes & Coolant (on dees)	0.00605	0.00098
Cooling: Pipes & Coolant (routed)	0.00098	0.00016
Supports Mechanics: Dee Airex foam	0.00077	0.00038
Supports Mechanics: Dee CFRP panel	0.00434	0.00215
Supports Mechanics: Disk CFK extension	0.00062	0.00031
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00114	0.00056

Supports & Cooling: MB in FPIX_2 (Full volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: ITST (cylinder around TBPX)	0.00317	0.00157
Supports Mechanics: ITST (cylinder around TEPX)	0.01085	0.00538
Supports Mechanics: ITST (cylinder around TFPX)	0.01916	0.00949
Supports Mechanics: ITST (flange)	0.00110	0.00054

Supports & Cooling: MB in ITST (Full volume)

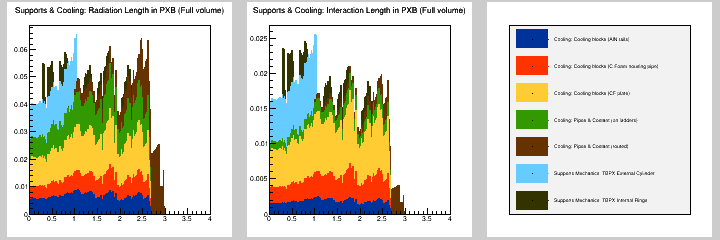

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN rails)	0.00422	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00399	0.00203
Cooling: Cooling blocks (CF plate)	0.00885	0.00450
Cooling: Pipes & Coolant (on ladders)	0.00678	0.00104
Cooling: Pipes & Coolant (routed)	0.00472	0.00076
Supports Mechanics: TBPX External Cylinder	0.00371	0.00184
Supports Mechanics: TBPX Internal Rings	0.00148	0.00074

Supports & Cooling: MB in PXB (Full volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: Service cylinder (around TEPX)	0.00397	0.00197
Supports Mechanics: Service cylinder (around TFPX)	0.00777	0.00385
Supports Mechanics: Service cylinder (reinf. rings)	0.00114	0.00056
Supports Mechanics: Service cylinder (transition region)	0.00046	0.00023

Supports & Cooling: MB in SERVICE_CYLINDER_ST (Full volume)

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN plate)	0.00667	0.00185
Cooling: Cooling blocks (AlN rails)	0.00422	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00399	0.00203
Cooling: Cooling blocks (CF plate)	0.00885	0.00450
Cooling: Cooling blocks (Graphite plate)	0.01254	0.00637
Cooling: Cooling blocks (Si3N4 plate)	0.01347	0.00358
Cooling: Pipes & Coolant (on dees)	0.01585	0.00256
Cooling: Pipes & Coolant (on ladders)	0.00678	0.00104
Cooling: Pipes & Coolant (routed)	0.01132	0.00182
Supports Mechanics: Dee Airex foam	0.00077	0.00038
Supports Mechanics: Dee CFRP panel	0.02183	0.01081
Supports Mechanics: Dee Carbon foam panel	0.01464	0.00744
Supports Mechanics: Disk CFK extension	0.00353	0.00175
Supports Mechanics: ITST (cylinder around TBPX)	0.00317	0.00157
Supports Mechanics: ITST (cylinder around TEPX)	0.01085	0.00538
Supports Mechanics: ITST (cylinder around TFPX)	0.01916	0.00949
Supports Mechanics: ITST (flange)	0.00110	0.00054
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00114	0.00056
Supports Mechanics: Service cylinder (around TEPX)	0.00397	0.00197
Supports Mechanics: Service cylinder (around TFPX)	0.00777	0.00385
Supports Mechanics: Service cylinder (reinf. rings)	0.00114	0.00056
Supports Mechanics: Service cylinder (transition region)	0.00046	0.00023
Supports Mechanics: TBPX External Cylinder	0.00371	0.00184
Supports Mechanics: TBPX Internal Rings	0.00148	0.00074

Supports & Cooling: MB in all subdetectors (Full volume)

Total (Tracking volume)

Average (eta = [0, 4.0])	Radiation length	Interaction length
	0.24048	0.06464

Total per category (Tracking volume)

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.02577	0.00643
Module	0.10230	0.01507
Supports & Cooling	0.11242	0.04315

Total per category: MB in All IT subdetectors (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.01007	0.00297
Module	0.05224	0.00767
Supports & Cooling	0.05491	0.02088

Total per category: MB in FPIX_1 (Tracking volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00871	0.00180
Module	0.01551	0.00235
Supports & Cooling	0.02534	0.00980

Total per category: MB in FPIX_2 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00258	0.00128

Total per category: MB in ITST (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00698	0.00166
Module	0.03456	0.00505
Supports & Cooling	0.02641	0.00962

Total per category: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports & Cooling	0.00287	0.00142

Total per category: MB in SERVICE_CYLINDER_ST (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling	0.00000	0.00000
Supports & Cooling	0.00032	0.00015

Total per category: MB in TEDD_1 (Tracking volume)

Category details: Cabling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00095	0.00032
Cabling: E-links	0.00047	0.00005
Cabling: GBT + DCDC converter	0.00142	0.00040
Cabling: High voltage lines (on dees)	0.00076	0.00031
Cabling: High voltage lines (routed)	0.00051	0.00021
Cabling: Optical fibers	0.00054	0.00031
Cabling: Serial power chains (on dees)	0.00265	0.00067
Cabling: Serial power chains (routed)	0.00276	0.00070

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: Dee PCB panel	0.00871	0.00180
Cabling: E-links	0.00000	0.00000
Cabling: High voltage lines (routed)	0.00000	0.00000
Cabling: Serial power chains (routed)	0.00000	0.00000

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00047	0.00016
Cabling: E-links	0.00276	0.00029
Cabling: High voltage lines	0.00108	0.00044
Cabling: Optical fibers	0.00027	0.00016
Cabling: Serial power chains	0.00240	0.00062

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: Pipe thermistor twisted pairs	0.00000	0.00000

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cabling: DCDC converter power wires	0.00142	0.00048
Cabling: Dee PCB panel	0.00871	0.00180
Cabling: E-links	0.00323	0.00034
Cabling: GBT + DCDC converter	0.00142	0.00040
Cabling: High voltage lines	0.00108	0.00044
Cabling: High voltage lines (on dees)	0.00076	0.00031
Cabling: High voltage lines (routed)	0.00051	0.00021
Cabling: Optical fibers	0.00081	0.00047
Cabling: Pipe thermistor twisted pairs	0.00000	0.00000
Cabling: Serial power chains	0.00240	0.00062
Cabling: Serial power chains (on dees)	0.00265	0.00067
Cabling: Serial power chains (routed)	0.00276	0.00070

Cabling: MB in all subdetectors (Tracking volume)

Category details: Module (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00254	0.00013
IT Module: Glue (between ROC and rails)	0.00045	0.00021
IT Module: Glue (between sensor and HDI)	0.00045	0.00021
IT Module: HDI	0.00992	0.00167
IT Module: ROC (Si)	0.00903	0.00183
IT Module: SMD capacitors	0.01073	0.00085
IT Module: Screws	0.00326	0.00034
IT Module: Sensor (active Si)	0.00811	0.00164
IT Module: Sensor (dead area)	0.00059	0.00012
IT Module: Thread bushing	0.00716	0.00066

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00083	0.00004
IT Module: Glue (between ROC and rails)	0.00015	0.00007
IT Module: Glue (between sensor and HDI)	0.00015	0.00007
IT Module: HDI	0.00324	0.00055
IT Module: ROC (Si)	0.00294	0.00059
IT Module: SMD capacitors	0.00336	0.00027
IT Module: Screws	0.00065	0.00007
IT Module: Sensor (active Si)	0.00265	0.00054
IT Module: Sensor (dead area)	0.00014	0.00003
IT Module: Thread bushing	0.00142	0.00013

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00166	0.00009
IT Module: Glue (between ROC and rails)	0.00029	0.00014
IT Module: Glue (between sensor and HDI)	0.00029	0.00014
IT Module: HDI	0.00646	0.00109
IT Module: ROC (Si)	0.00588	0.00119
IT Module: SMD capacitors	0.00703	0.00056
IT Module: Screws	0.00227	0.00024
IT Module: Sensor (active Si)	0.00528	0.00107
IT Module: Sensor (dead area)	0.00040	0.00008
IT Module: Thread bushing	0.00499	0.00046

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
IT Module: Bump bonds	0.00503	0.00027
IT Module: Glue (between ROC and rails)	0.00089	0.00041
IT Module: Glue (between sensor and HDI)	0.00089	0.00041
IT Module: HDI	0.01961	0.00331
IT Module: ROC (Si)	0.01785	0.00362
IT Module: SMD capacitors	0.02112	0.00168
IT Module: Screws	0.00618	0.00065
IT Module: Sensor (active Si)	0.01603	0.00325
IT Module: Sensor (dead area)	0.00114	0.00023
IT Module: Thread bushing	0.01356	0.00124

Module: MB in all subdetectors (Tracking volume)

Category details: Supports & Cooling (Tracking volume)

FPIX_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (Graphite plate)	0.00296	0.00150
Cooling: Cooling blocks (Si3N4 plate)	0.01347	0.00358
Cooling: Pipes & Coolant (on dees)	0.00850	0.00137
Cooling: Pipes & Coolant (routed)	0.00175	0.00028
Supports Mechanics: Dee CFRP panel	0.01518	0.00752
Supports Mechanics: Dee Carbon foam panel	0.01271	0.00645
Supports Mechanics: Disk CFK extension	0.00035	0.00017

Supports & Cooling: MB in FPIX_1 (Tracking volume)

FPIX_2

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN plate)	0.00667	0.00185
Cooling: Cooling blocks (Graphite plate)	0.00958	0.00487
Cooling: Pipes & Coolant (on dees)	0.00425	0.00069
Cooling: Pipes & Coolant (routed)	0.00000	0.00000
Supports Mechanics: Dee Airex foam	0.00054	0.00027
Supports Mechanics: Dee CFRP panel	0.00305	0.00151
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00114	0.00056

Supports & Cooling: MB in FPIX_2 (Tracking volume)

ITST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: ITST (cylinder around TFPX)	0.00225	0.00112
Supports Mechanics: ITST (flange)	0.00033	0.00016

Supports & Cooling: MB in ITST (Tracking volume)

PXB

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling: Cooling blocks (AlN rails)	0.00422	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00399	0.00203
Cooling: Cooling blocks (CF plate)	0.00885	0.00450
Cooling: Pipes & Coolant (on ladders)	0.00678	0.00104
Cooling: Pipes & Coolant (routed)	0.00115	0.00019
Supports Mechanics: TBPX Internal Rings	0.00142	0.00070

Supports & Cooling: MB in PXB (Tracking volume)

SERVICE_CYLINDER_ST

Average (eta = [0, 4.0])	Radiation length	Interaction length
Supports Mechanics: Service cylinder (around TFPX)	0.00235	0.00116
Supports Mechanics: Service cylinder (reinf. rings)	0.00022	0.00011
Supports Mechanics: Service cylinder (transition region)	0.00030	0.00015

Supports & Cooling: MB in SERVICE_CYLINDER_ST (Tracking volume)

TEDD_1

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00004	0.00001
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00025	0.00013
Supports Mechanics: TEDD disk	0.00003	0.00001

Supports & Cooling: MB in TEDD_1 (Tracking volume)

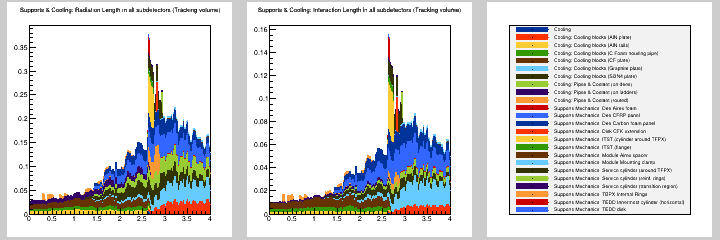

All IT subdetectors

Average (eta = [0, 4.0])	Radiation length	Interaction length
Cooling	0.00004	0.00001
Cooling: Cooling blocks (AlN plate)	0.00667	0.00185
Cooling: Cooling blocks (AlN rails)	0.00422	0.00117
Cooling: Cooling blocks (C Foam housing pipe)	0.00399	0.00203
Cooling: Cooling blocks (CF plate)	0.00885	0.00450
Cooling: Cooling blocks (Graphite plate)	0.01254	0.00637
Cooling: Cooling blocks (Si3N4 plate)	0.01347	0.00358
Cooling: Pipes & Coolant (on dees)	0.01275	0.00206
Cooling: Pipes & Coolant (on ladders)	0.00678	0.00104
Cooling: Pipes & Coolant (routed)	0.00290	0.00047
Supports Mechanics: Dee Airex foam	0.00054	0.00027
Supports Mechanics: Dee CFRP panel	0.01823	0.00903
Supports Mechanics: Dee Carbon foam panel	0.01271	0.00645
Supports Mechanics: Disk CFK extension	0.00035	0.00017
Supports Mechanics: ITST (cylinder around TFPX)	0.00225	0.00112
Supports Mechanics: ITST (flange)	0.00033	0.00016
Supports Mechanics: Module Airex spacer	0.00012	0.00006
Supports Mechanics: Module Mounting clamp	0.00114	0.00056
Supports Mechanics: Service cylinder (around TFPX)	0.00235	0.00116
Supports Mechanics: Service cylinder (reinf. rings)	0.00022	0.00011
Supports Mechanics: Service cylinder (transition region)	0.00030	0.00015
Supports Mechanics: TBPX Internal Rings	0.00142	0.00070
Supports Mechanics: TEDD Innermost cylinder (horizontal)	0.00025	0.00013
Supports Mechanics: TEDD disk	0.00003	0.00001
